X-FN4F

SERIES NO.: X-FN4F

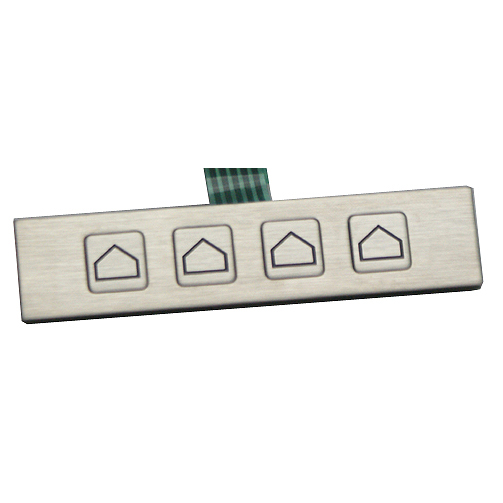

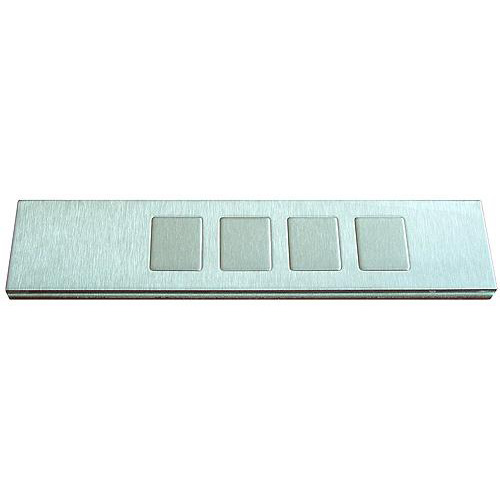

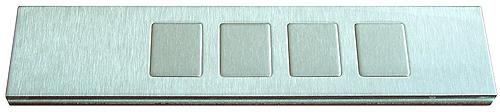

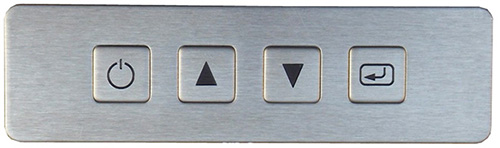

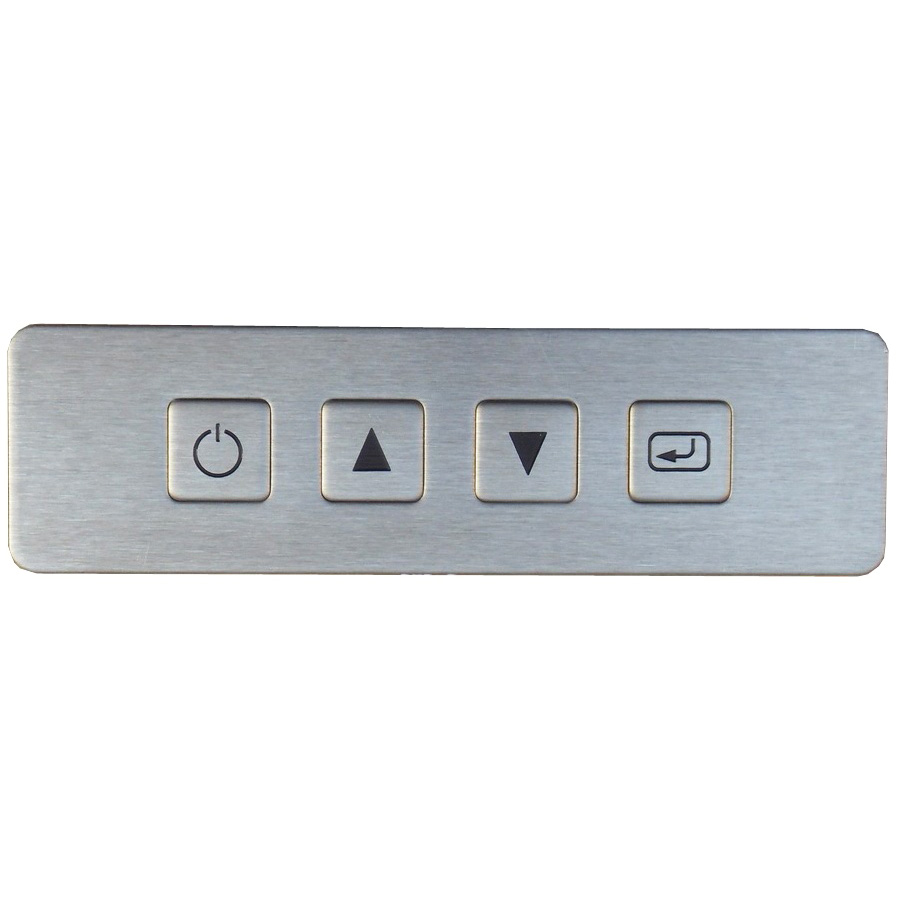

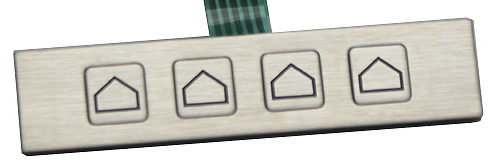

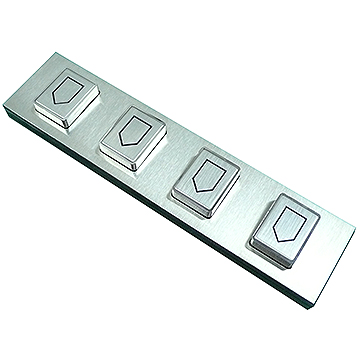

DESCRIPTION: 4 keys vandal proof IP65 function keypad in super quality stainless steel, with gold-on-gold key switch technology.

MODEL NO.: X-FN41F

DIMENSIONS: 116.0mm x 27.0mm (Front Panel)

MODEL NO.: X-FN42F

DIMENSIONS: 160.0mm x 40.0mm (Front Panel)

MODEL NO.: X-FN43F

DIMENSIONS: 120.0mm x 34.0mm (Front Panel)

MODEL NO.: X-FN44F

DIMENSIONS: 110.0mm x 24.0mm (Front Panel)

MAIN FEATURE

1. Stainless steel fascia and key-tops guard willful destruction, against corrosion, shock, dust, falling raining, splashing, hose-directed water and vandal resistant, operation under hostile environments.

2. key-tops are sunk laser-etched in legends and characters via using high quality ink for easy readability, long life to prevent lettering rub-off. Or protrusive engraving available

3. With firm tactile key feel, short travel gold-on-gold key switches, with unique double over-travel protection.

4. Waterproof/dirt-proof execution according to degree of protection IP65, waterproof and dirt proof encapsulation with unique membrane.

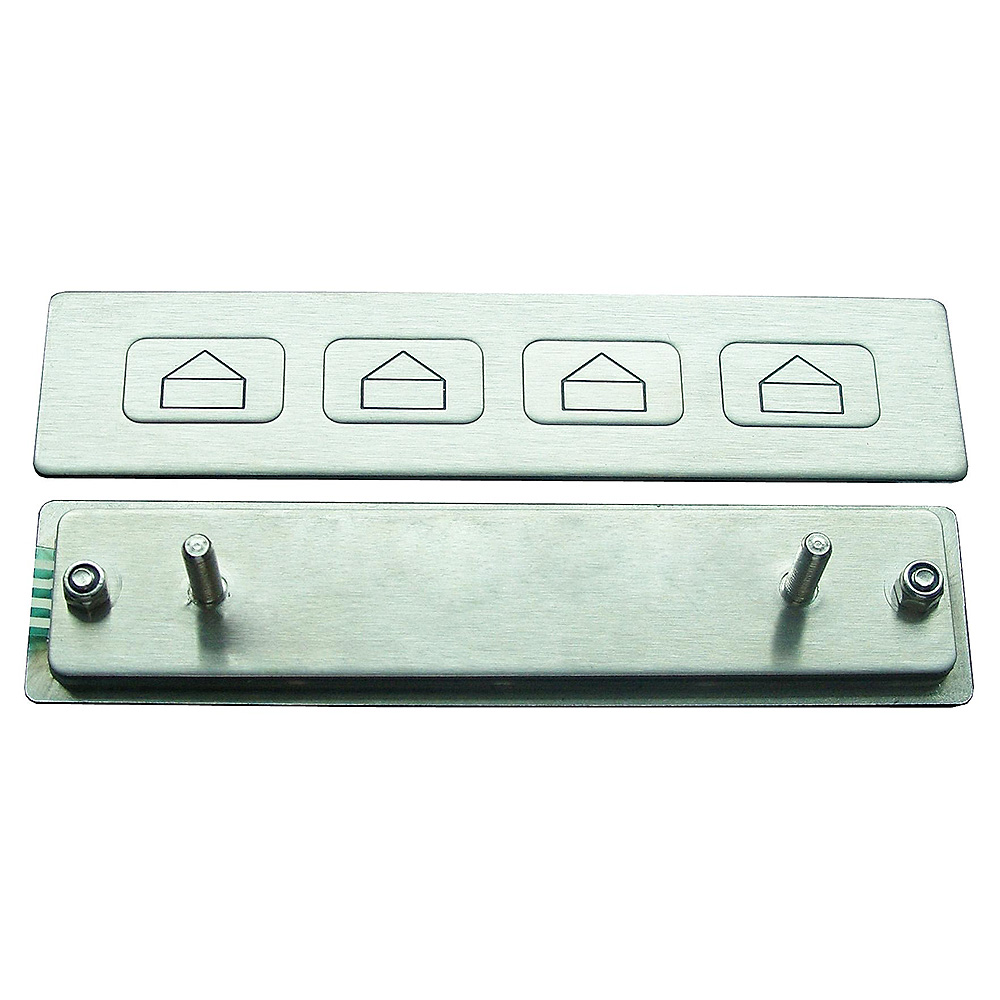

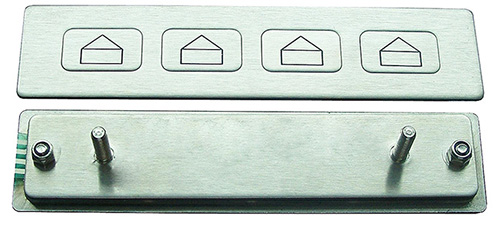

5. Easily mounting into enclosure or panel.

MECHANICAL DATA

1.      Switching Material: Gold-on-Gold

2.      Key Travel: 0.45mm

3.      Lettering: laser engraving, or raised letters.

4.      Front Panel: brushed stainless steel

5.      Actuator/Keys Materials: stainless steel

6.      G.W. 0.25KGs (X-FN41F), 0.45KGs (X-FN42F), 0.30KGs (X-FN43F), 0.24KGs (X-FN44F)

ELECTRICAL DATA

1.     Power Supply Voltage: 5.0V DC.

2.     Power Consumption: Under 150.0mW for operation, under 50.0mW for non-operation

3.     Electrical Lifetime: > 5 years

ENVIRONMENTAL ADAPTABILITY

1.      Operating Temperature:-20°C to +60°C

2.      Storage Temperature:-30 °C to +70°C

3.      Operating RH: 30 ～ 90%

4.      Atmospheric Pressure: 60 ～ 106Kpa.

RELIABILITY

1.      RoHS Compliant, CE and FCC

2.      Protection Level: IP65(front panel)

3.      Vandal resistant IK10

4.      Key Lifespan >5 million actuations

5.      MTBF >50000h

6.      MTTR <30min
