X-EN16F

SERIES NO.: X-EN16F

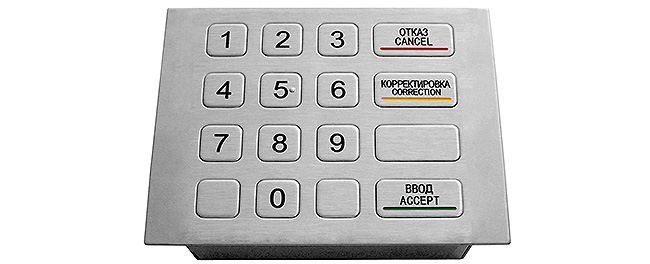

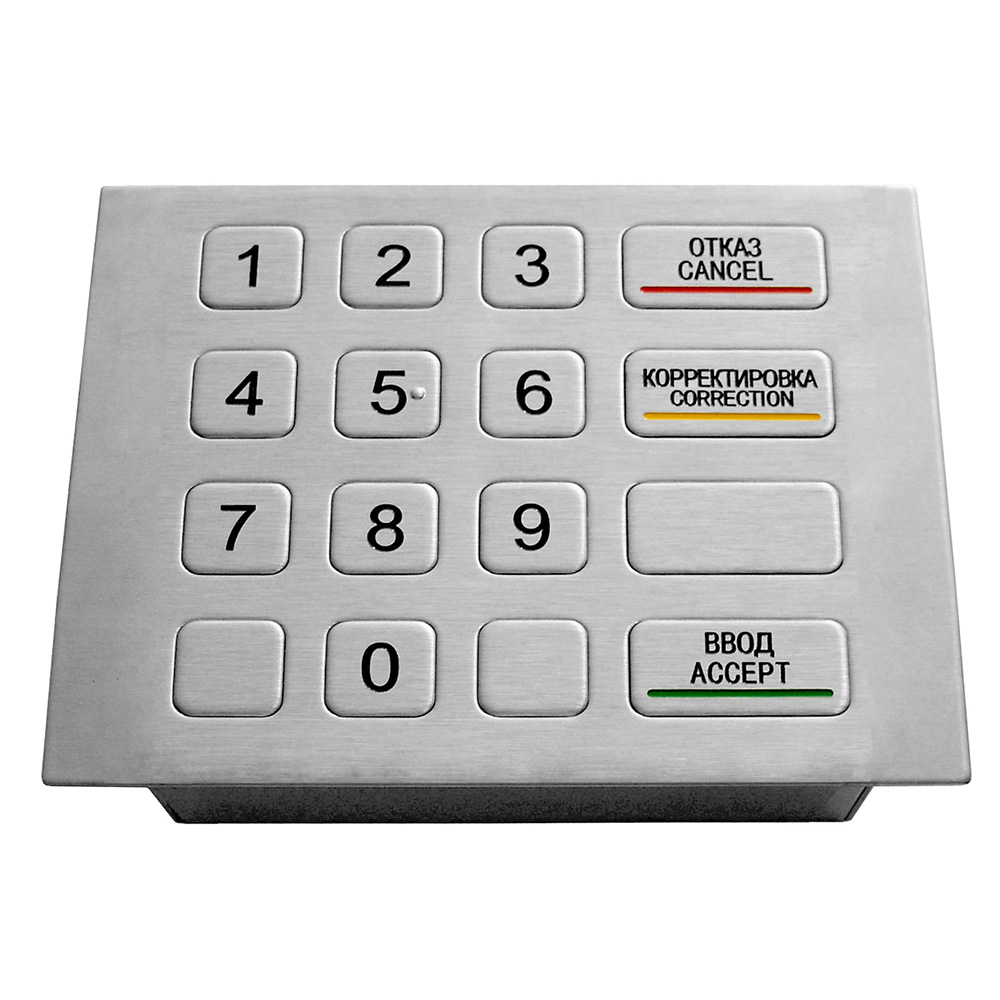

DESCRIPTION: 16 keys IP65 vandal-proof stainless steel encryption PINPAD with encryption module supporting DES/TDES is suitable for ATM/CDM, all kinds of bank terminals etc, with gold-on-gold key switch technology with short stroke 0.45mm, with top panel mounting solution.

MODEL NO.: X-EN161F

DIMENSIONS: 120.0mm x 98.0mm(front panel)

APPLICATION

This encryption PINPAD is mainly targeted for use for unsupervised or semi-supervised positions of varied bank access applications, Bank kiosks, ATM, CDMs etc.

MAIN FEATURE

1.     Stainless steel fascia and key-tops guard willful destruction, against corrosion, shock, dust, falling raining, splashing, hose-directed water and vandal resistant, operation under hostile environments.

2.     Internet friendly key layout, key-tops are sunk laser-etched in legends and characters via using high quality ink for easy readability, long life to prevent lettering rub-off. Or protrusive engraving available.

3.     The PINPAD in 4 x 4 matrix with Enter, Cancel, Correction, etc. compliance with ISO standard.

4.     16 bytes keys (16 master keys x 4 working keys), it can be self destructive with back-up battery to achieve this function.

5.     The PINPAD can be used as a keypad for numeric entry.

6.     The ATM can instruct PINPAD to exit key entry/supervisory mode.

COMMUNICATION PARAMETER.

1.     Standard RS232 serial interface.

2.     Communication velocity: 19200, 9600, 4800, 2400, 1200bps.

3.     Data format: N, 8, 1.

4.     16 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, correct, enter, cancel, backup key 3 defined for ABC.

5.     Data encryption and decryption (DES/TDES), MAC Algorithm.

6.     Encryption rate: < 1 second.

MECHANICAL DATA

1.     Key Stroke: 0.45mm.

2.     Front panel: brushed stainless steel.

3.     Actuator/keys materials: stainless steel.

4.     Mechanical Key lifespan: 5 Mio actuations.

5.     Lettering: laser engraving or raised letter.

6.     G.W.: 1.0KGs (X-EN161F)

ELECTRICAL DATA

1.     Power supply voltage: 5V DC.

2.     Power Consumption: Under 30mA for operation

3.     Communication interface: PS2, USB or RS232 are all available.

ENVIRONMENTAL ADAPTABILITY

1.     Operating temperature:-20°C to +60°C.

2.     Storage temperature: -30°C to +70°C.

3.     Operating RH: 30-90%.

4.     Atmospheric pressure: 60-106Kpa.

RELIABILITY

1.     RoHS Compliant, CE and FCC

2.     Protection Level: IP65(front panel dynamic)

3.     Vandal resistant IK10

4.     MTBF >50000H.

5.     MTTR <30min.
