> IP68 MOUSE
X-MP5SD
- 1. Laser IP68 mouse, 1200DPI resolutions.
- 2. Suitable for moist and dusty environments.
- 3. Three extra buttons for effortless scroll up, scroll down & scroll lock.
- 4. Enclosure: industrial silicone with antimicrobial material.

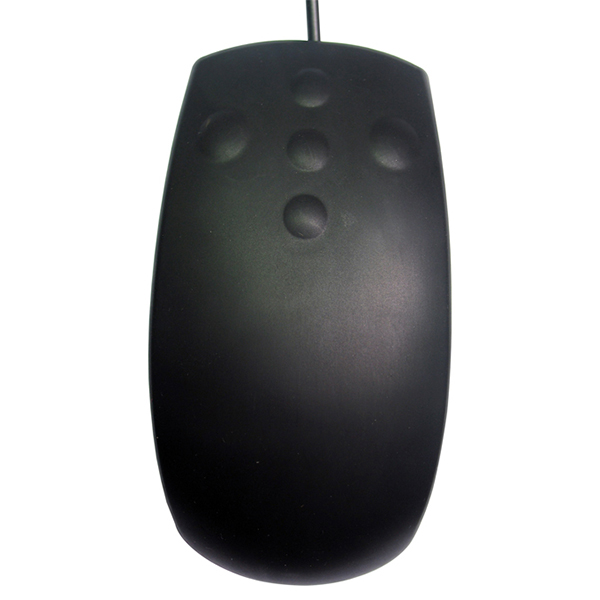

- Product description: IP68 medical silicone mouse with 5 keys
PRODUCT INTRODUCTION
SERIES NO.: X-MP5SD
DESCRIPTION: IP68 washable medical silicone Laser mouse with features a 5-buttons designed for right & left clicking and scrolling up and down just like a conventional mouse, with antimicrobial surface.
MODEL NO.: X-MP51SD
DIMENSIONS: 130(L) x 80(W) x 48(H) mm
MODEL NO.: X-MP52SD
DIMENSIONS: 115(L) x 68(W) x 42(H) mm
MAIN FEATURE
1. Laser IP68 mouse, 1200DPI resolutions.
2. Suitable for moist and dusty environments.
3. Three extra buttons for effortless scroll up, scroll down & scroll lock.
4. Special dura-coating for excellent mechanical and chemical resistance.
5. Enclosure: industrial silicone with antimicrobial material.
TECHNICAL SPECIFICATION
|
ITEM |
SPECIFICATION |
|
|
Mechanical |
Key |
5 keys |
|
Key Travel |
1.5 mm |
|
|
Key switch lifespan |
more than 10 Mio actuations |
|
|
Actuation Force |
0.6 N to 1.2 N |
|
|
Dimension |
130(L) x 80(W) x 48(H) mm (X-MP51SD) ; 115(L) x 68(W) x 42(H) mm (X-MP52SD) |
|
|
G.W.: |
0.35kg (X-MP51SD) ; 0.3kg (X-MP52SD) |
|
|
Interface |
PS2, USB are available. |
|
|
Electrical |
Power supply |
5V DC+ 10%, keyboard interface |
|
Protection level |
IP68 dynamic, NEMA3 |
|
|
EMC Standard |
EN55022(B) |
|
|
Power consuming |
≤1.0W(dynamic) |
|
|
≤0.2W(static) |
||
|
Contact Material |
Gold/Carbon |
|
|
Environmental |
Operating temperature |
-20°C-+ 60°C |
|
Storage temperature |
- 30°C-+ 70°C |
|
|
Operating RH |
30-90% |
|
|
Atmospheric pressure |
60-106Kpa. |
|
|
Reliable |
Certificates |
RoHS compliant, CE and FCC certified. |
|
MTBF |
>50000h |
|
|
MTTR |
< 30min |
|
|
OS |
OS is under DOS/Windows95/98/NT/ME/2000/XP/2003/Vista/7/8, Linux, Unix, Mac OS9 / OSX |
|
|
Packing Details |
Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton. |
|
