> VANDALPROOF METAL KEYBOARD

X-BP71B

1， Compact keyboard with trackball.
2, IP65(Static) from the panel
3, Keyboard with full-long travel switches.
4, Electroplated titanium black panel is available.
Product description: IP65 industrial metal compact keyboard with 25mm trackball X-BP71B
Inquiry

PRODUCT INTRODUCTION

SERIES NO.: X-BP71B

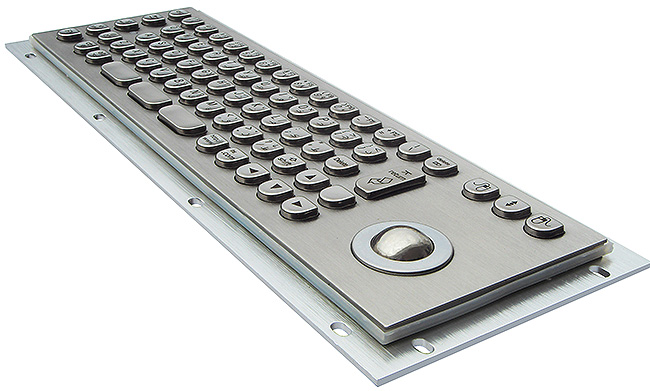

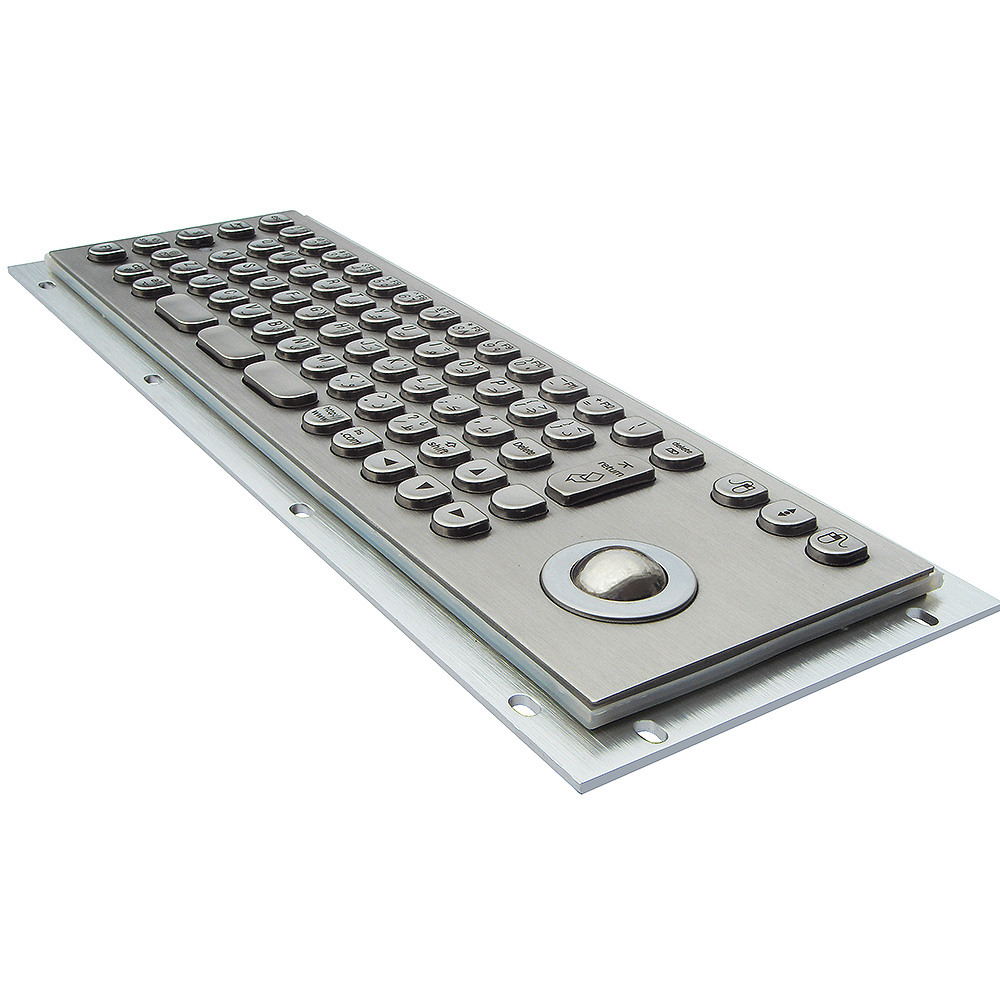

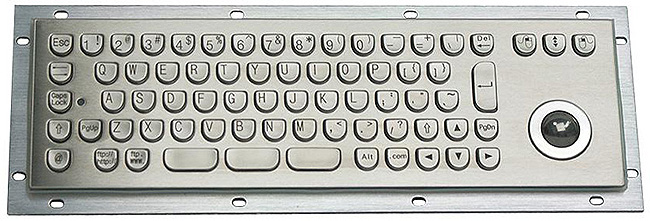

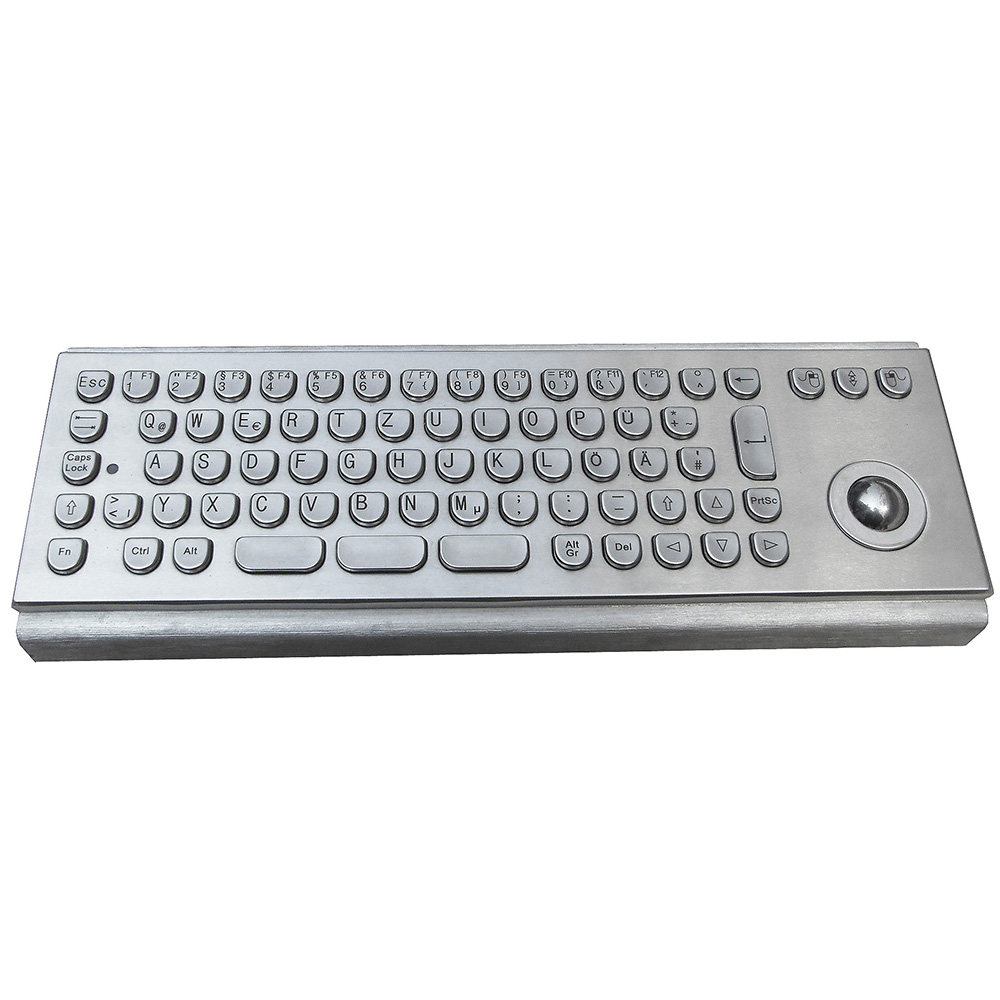

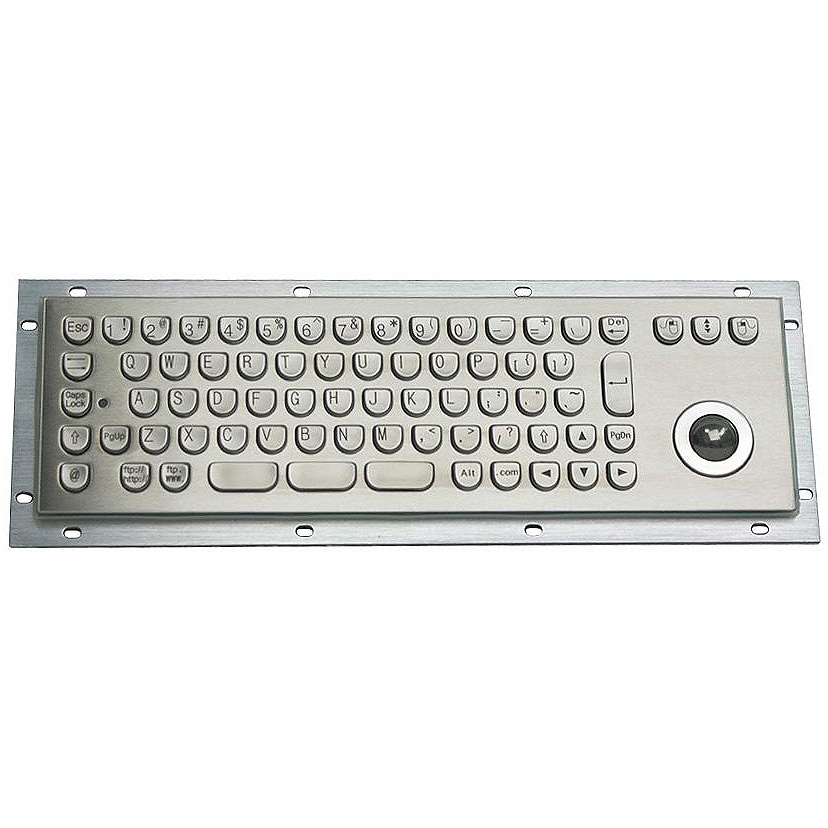

DESCRIPTION: 71 keys vandal proof stainless steel keyboard with integrated 25mm stainless steel tracker ball, with carbon-on-gold key switch technology for fast and accurate data input, back panel mounting.

MODEL NO.: X-BP711B

DIMENSIONS: 330.0mm x 100.0mm (front panel)

MODEL NO.: X-BP712B

DIMENSIONS: 330.0mm x 100.0mm (front panel)

MAIN FEATURE

1. Protuberant keys, with Sandblasting and laser engraved.

2. 25mm stainless steel trackball with stainless steel ring protecting the trackball sealing.

3. Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level. We design and manufacture complete electronic modules including controller in close consultation with our customers.

4. Waterproof execution according to degree of protection IP65(Static) from the panel, the keyboard is sealed against the ingress or liquid and dirt, when mounted in a suitable enclosure.

5. The keyboards have an excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation

6. Internet friendly key layout, ease of customizing with multiple languages, to accommodate foreign or custom variants.

7. Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.

8. Easily mounting into enclosure or panel, and is provided with PS/2, USB connection output cables that plug directly into the host computer for normal keyboard operations.

MECHANICAL DATA

1. Key: 71 keys, SUS304 stainless steel with Sandblasting.

2. Key top style: Protuberant keys, with laser engraved and raised braille on keys are available

3. Key travel:1.5mm

4. Tracker ball: 25mm (1.0') diameter, Resolution 440 edges/revolution. Industrial black phenolic trackballs are available.

5. Front Plate: Super quality brushed stainless steel

6. G.W.: 1.5KGs (X-BP711B), 1.4KG(X-BP712B)

ELECTRICAL DATA

1. Supply Voltage: +5V DC +/-5%

2. Current Rating: appr. 20mA

3. Switch Contact Material: Carbon-on-Gold key switch technology

4. Interface: PS2, USB available.
