> VANDALPROOF METAL KEYBOARD

X-NN64B

1, Keyboard with plane rectangular keys.
2, IP65(Static) from the panel
3, Keyboard with short travel 0.45mm switches.
4, Electroplated titanium black panel is available.

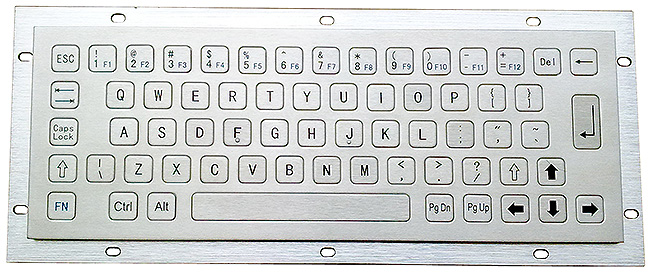

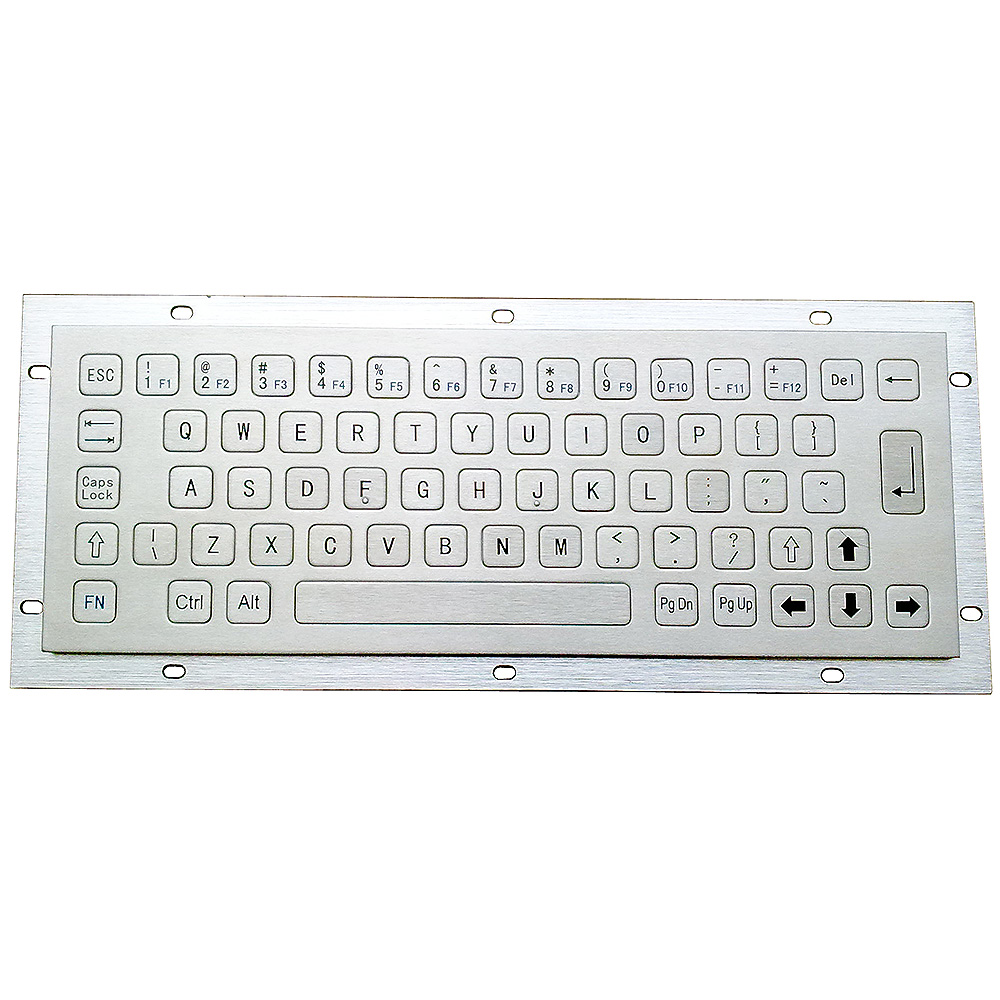

Product description: IP65 anti-vandal stainless steel keyboard X-NN64B
Inquiry

PRODUCT INTRODUCTION

SERIES NO.: X-NN64B

DESCRIPTION: 64 keys vandal proof stainless steel keyboard with gold-on-gold key switch technology, back panel mounting.

MODEL NO.: X-NN641B

DIMENSIONS: 295.0mm x 105.0mm (front panel)

MAIN FEATURE

1. Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level. We design and manufacture complete electronic modules including controller in close consultation with our customers.

2. Waterproof execution according to degree of protection IP65(static) from the panel, the keyboard is sealed against the ingress or liquid and dirt, when mounted in a suitable enclosure.

3. Internet friendly key layout, ease of customizing with multiple languages, to accommodate foreign or custom variants.

4. Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.

5. Easily mounting into enclosure or panel, and is provided with PS/2, USB connection output cables that plug directly into the host computer for normal keyboard operations.

MECHANICAL DATA

1. Key: 64 keys, SUS304 brushed stainless steel

2. Key top style: Plain/Non-Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available

3. Key travel:0.45mm

4. Front Plate: Super quality brushed stainless steel

5. Actuator/keys materials: stainless steel

6. G.W.: 1.60KGs (X-NN641B)

ELECTRICAL DATA

1. Supply Voltage: +5V DC +/-5%

2. Current Rating: appr. 20mA

3. Switch Contact Material: Gold-on-Gold key switch technology

4. Interface: PS2, USB available.
