X-NP81D

SERIES NO.: X-NP81D

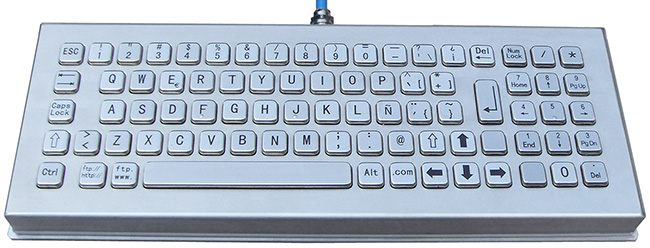

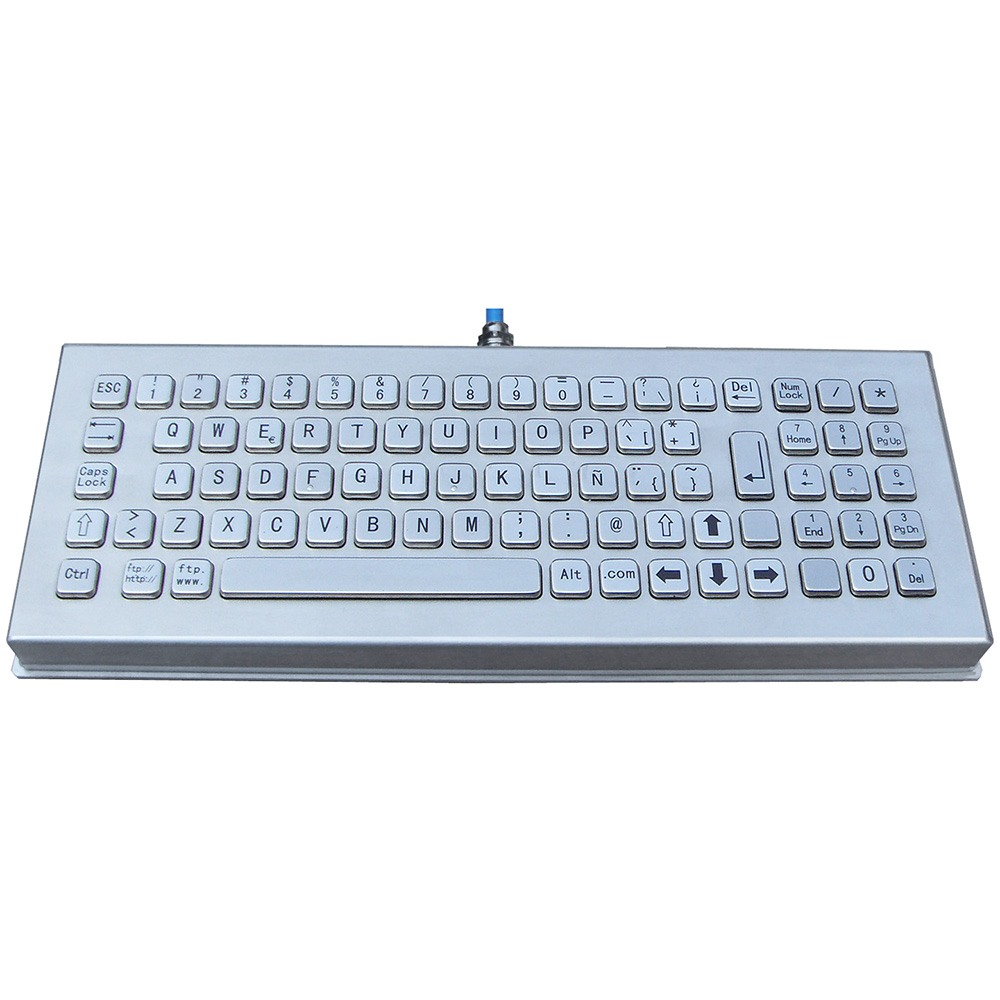

DESCRIPTION:         IP67 81 keys vandal proof stainless steel intrinsically safe industrial desk top keyboard with numeric keypad, with carbon-on-gold key switch technology for fast and accurate data input.

MODEL NO.:    X-NP811D

DIMENSIONS:   344.5mm x 125.0mm x 30.0mm (L x W x H)

MAIN FEATURE

1.      Intrinsically safe industrial desk top keyboard.

2.      Ex-mark: ExibI.

3.      It can used in the environment with methane and coal dust explosive mix.

4.      With 15 keys numeric keypad.

5.      Rugged construction for reliable functionality

6.      Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level. We design and manufacture complete electronic modules including controller in close consultation with our customers.

7.      Waterproof execution according to degree of protection IP67, the keyboard is sealed against the ingress or liquid and dirt

8.      The keyboards have an excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation

9.      Internet friendly key layout, ease of customizing with multiple languages, to accommodate foreign or custom variants.

10.    Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.

MECHANICAL DATA

1.      Key: 81 keys, super quality brushed stainless steel

2.      Key top style: Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available

3.      Key travel:2.0mm

4.      Front Plate: Super quality brushed stainless steel

5.      Actuator/keys/Casing materials: Super quality stainless steel

6.      G.W.: 2.4KGs(X-NP811D)

ELECTRICAL ATA

1.      Ex-mark: ExibI.

2.      Intrinsically safe data : Ui: DC5V; I: 40mA; Ci: 0μF; Li: 0mH

3.      Supply Voltage: +5V DC +/-5%

4.      Current Rating: appr. 20mA

5.      Contact materials: carbon-on-gold key switch technology

6.      Interface: PS2, USB available.

7.      OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY

1.      Operating temperature:-20^oC to +60^oC

2.      Storage temperature: -30^oC to +70^oC

3.      Operating RH: 30-90%

4.      Atmospheric pressure: 60-106Kpa.

RELIABILITY

1.      RoHS Compliant, CE and FCC

2.      Protection Level: IP65

3.      Vandal resistant IK09

4.      MTBF >50000H

5.      MTTR <30min
