> INDUSTRIAL POINT DEVICES

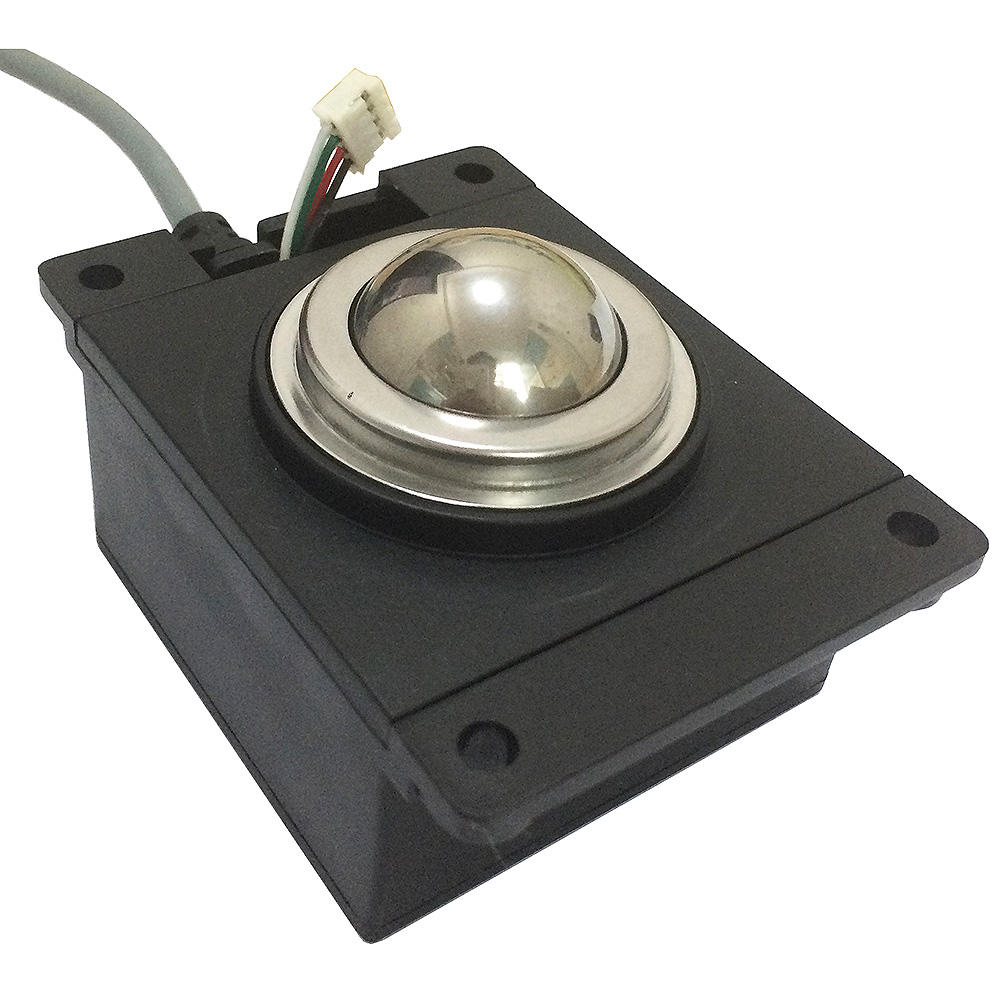

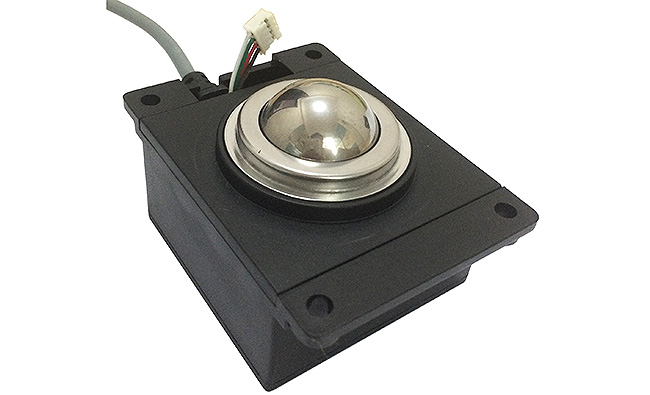

X-BL25
- 1, 25mm laser trackball module.
- 2, Trackball with quiet design
- 3, Ideal for use in environments of medical settings.
- 4, IP67 from the panel.
- Product description: 25.4mm (1.0') vandal proof IP65 LASER trackball module with high resolution and reliable positioning data.
PRODUCT INTRODUCTION
SERIES NO.: X-BL25
DESCRIPTION: 25.4mm (1.0') vandal proof IP65 LASER trackball module with high resolution and reliable positioning data.
MODEL NO.: X-BL251
DIMENSIONS: 54.0mm x 74.0mm (front panel)
MAIN FEATURE
1. Quiet design, very smooth feel without any noise.
2. Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.
3. Laser encoders provide fast, high resolution more than 1000dpi, reliable positioning data.
4. Available 40mm, 38mm, 25mm, 22mm, 19mm and 16mm diameter stainless steel for smooth, durable operation and precise cursor positioning.
5. Rate sensitive dynamic resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly.
TECHNICAL SPECIFICATION:
|
ITEM |
SPECIFICATION |
|
|
Mechanical Data |
Ball diameter |
25.4 mm/1. 0' (19mm, 36mm, 38mm 40mm also available) |
|
Track ball lifespan |
> 10 Mio revolutions |
|
|
Actuation Force |
1.0 N to 3.0N |
|
|
Dimension |
38.1mm for track ball. Front plate (W x H): 54.0mm x 74.0mm |
|
|
Interface |
PS2, USB are available, Y type cable with ports of PS2 and USB |
|
|
Electrical |
Power supply |
5V DC+ 10%, keyboard interface |
|
Protection level |
IP65 dynamic, NEMA3 |
|
|
EMC Standard |
EN55022(B) |
|
|
Power consuming |
≤1.00W(dynamic) |
|
|
≤0.2W(static) |
||
|
Environmental |
Operating temperature |
-20°C-+ 60°C |
|
Storage temperature |
- 30°C-+ 70°C |
|
|
Operating RH |
30-90% |
|
|
Atmospheric pressure |
60-106Kpa. |
|
|
Reliable |
Certificates |
RoHS compliant, CE and FCC certified. IP65 front panel. |
|
MTBF |
>50000h |
|
|
MTTR |
< 30min |
|
|
OS |
DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX |
|
|
Packing Details |
Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton. |
|
