X-BP71F-BL

SERIES NO.: X-BP71F-BL

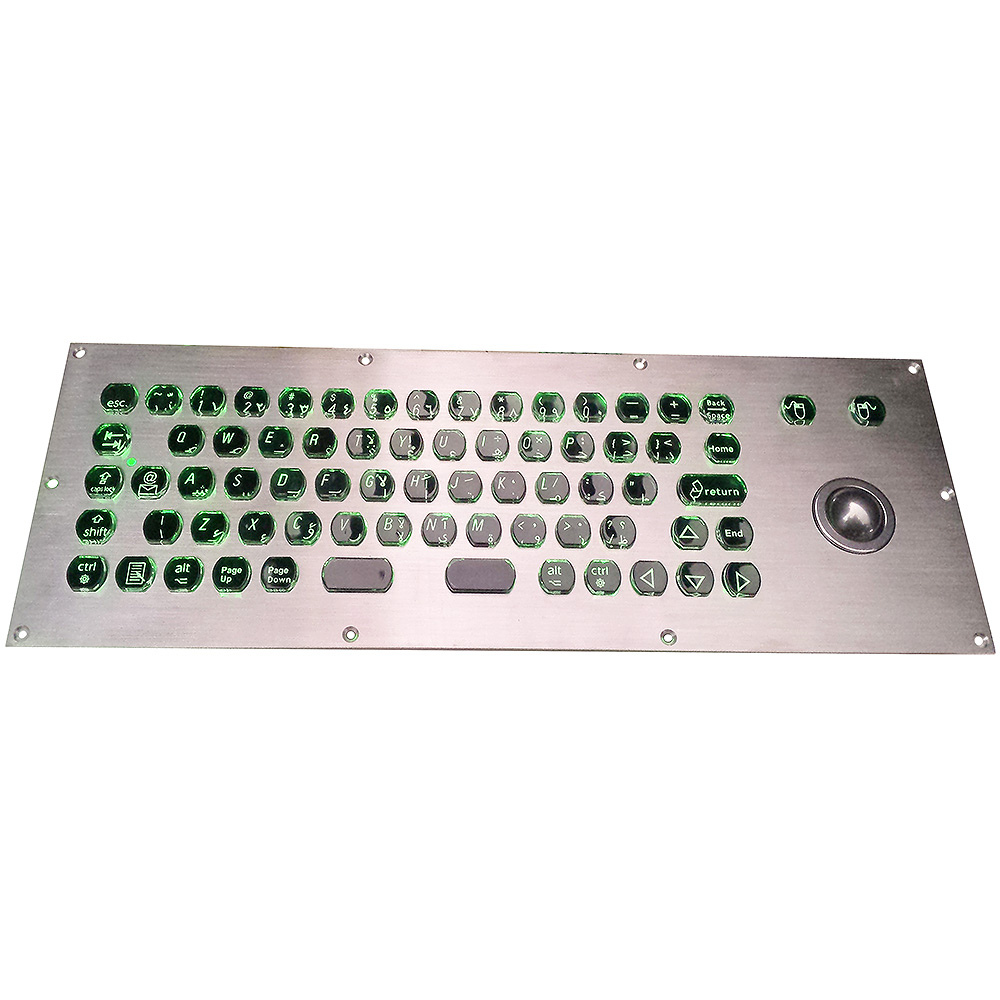

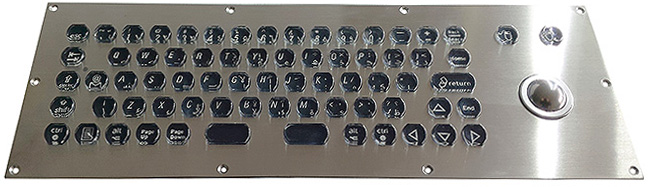

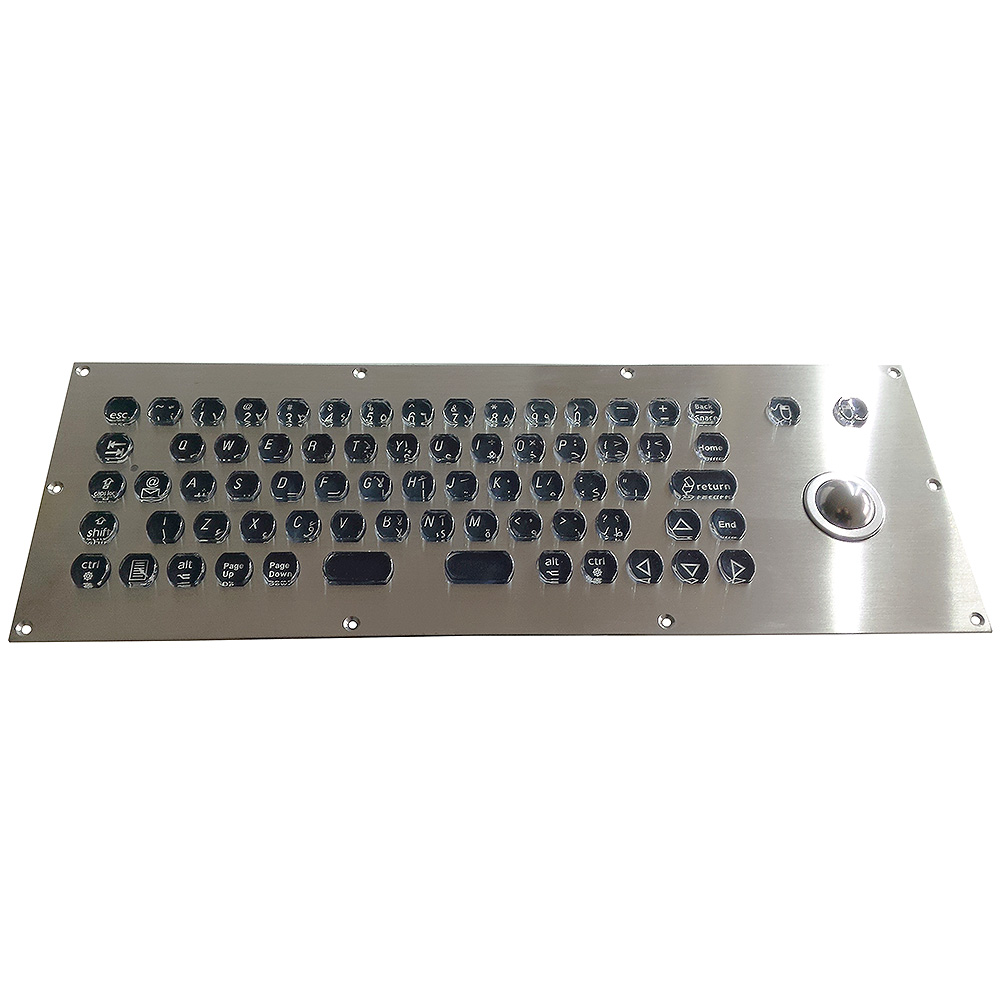

DESCRIPTION: 71 keys vandal proof stainless steel keyboard with adjustable backlighting, integrated 38mm or 25mm stainless steel laser tracker ball, with carbon-on-gold key switch technology for fast and accurate data input, front panel mounting. Anti-scratch and durable electroplated titanium black panel is available.

MODEL NO.: X-BP711F-BL

DIMENSIONS: 373.0mm x 132.0mm (front panel)

APPLICATIONS:

1.      For working in low-light areas, it is also available with optional illumination version.

2.      This keyboard provides full-size versatility in a rugged, compact design with the added convenience of built-in mouse. Engineered for NEMA 4X protection from dust, water and corrosive liquids. This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings.

3.      MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;

4.      MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc

5.      MILITARY: Army, Navy, Air force

6.      INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses

7.      OTHER INDUSTRIES

MAIN FEATURE

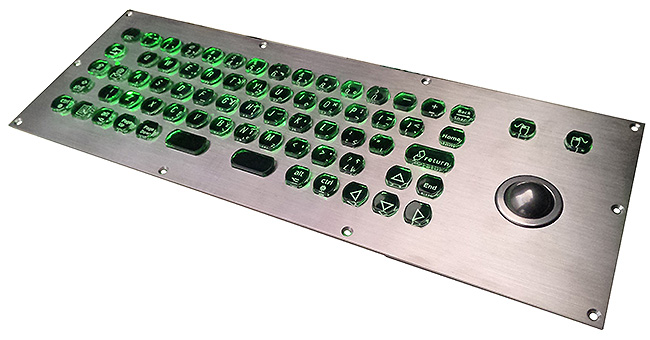

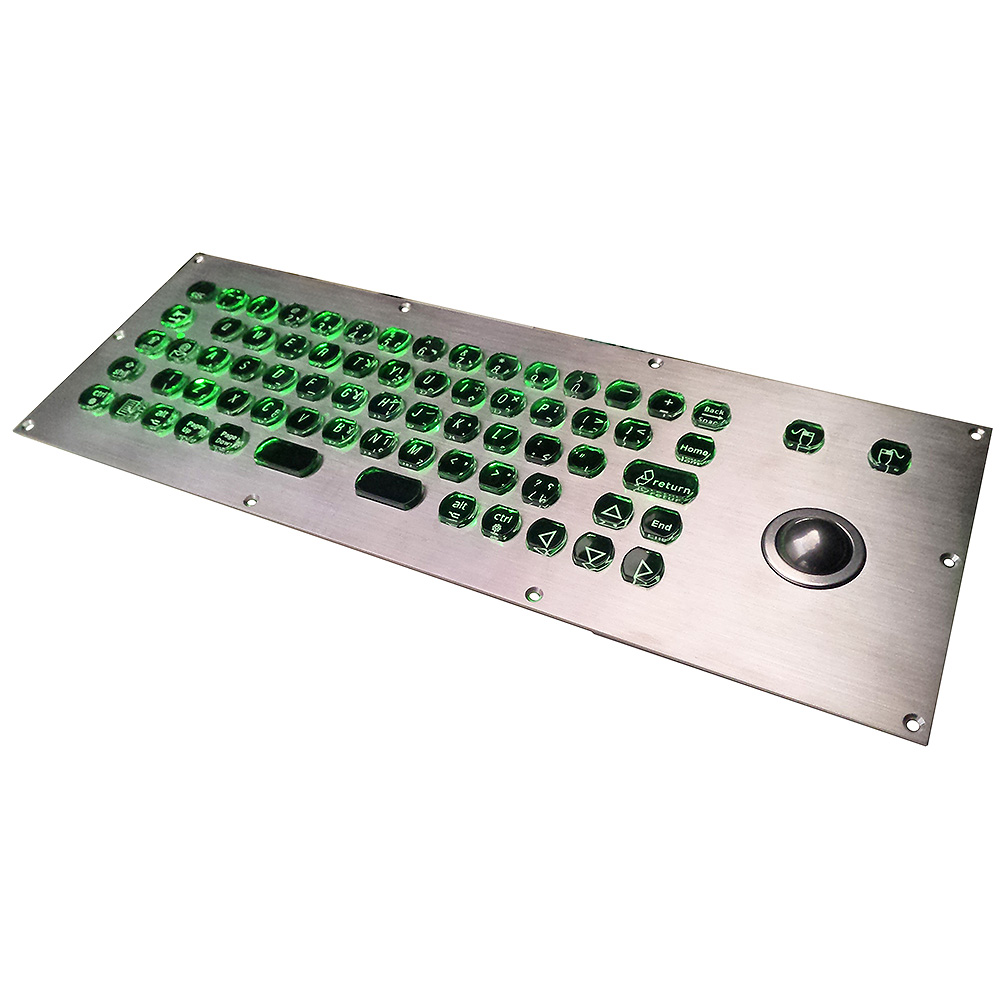

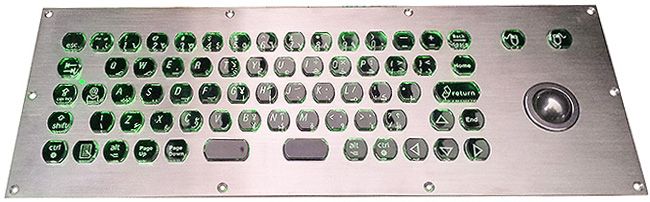

1.      Keyboard with adjustable backlighting, white, blue, red, green color optional.

2.      Keyboard with IP67 laser trackball module.

3.      Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level. We design and manufacture complete electronic modules including controller in close consultation with our customers.

4.      Waterproof execution according to degree of protection IP65 (Dynamic) from the panel, the keyboard is sealed against the ingress or liquid and dirt, when mounted in a suitable enclosure.

5.      The keyboards have an excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation

6.      Internet friendly key layout, ease of customizing with multiple languages, to accommodate foreign or custom variants.

7.      Easily mounting into enclosure or panel, and is provided with PS/2, USB connection output cables that plug directly into the host computer for normal keyboard operations.

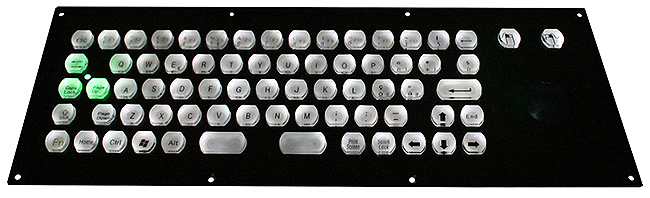

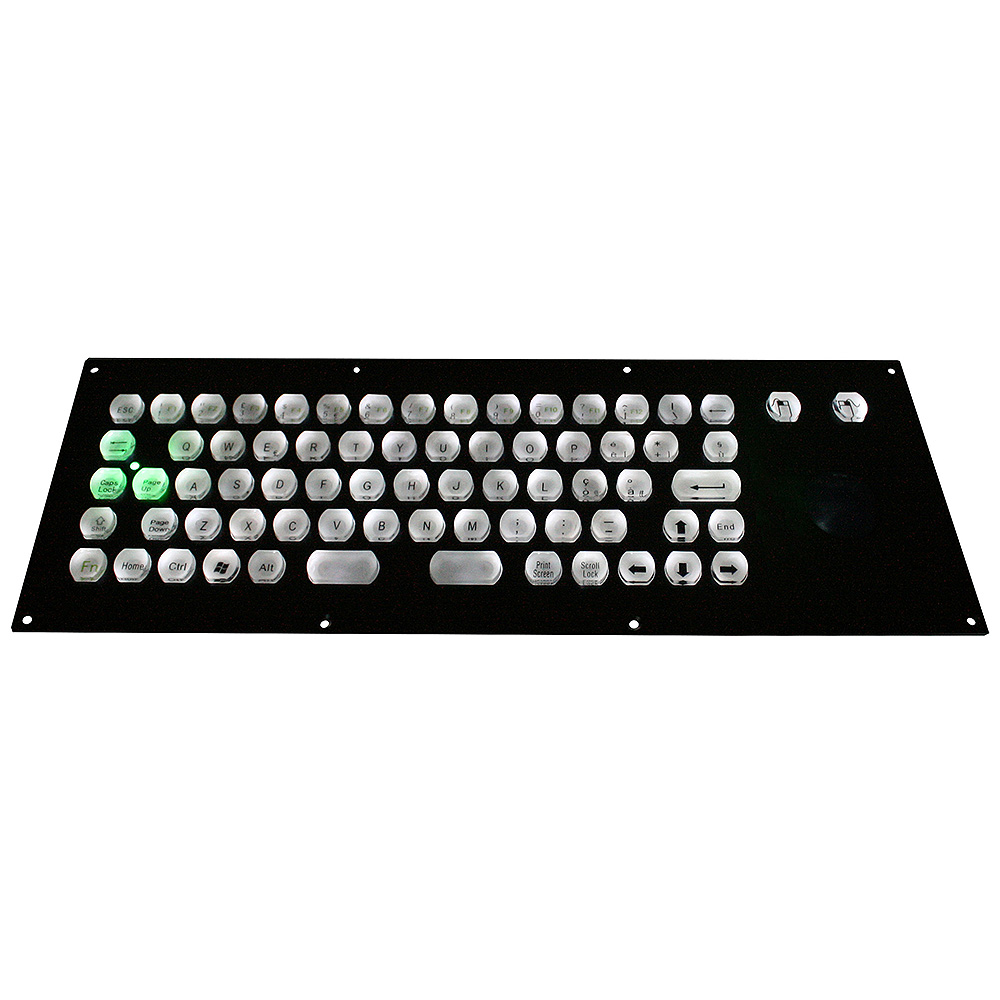

8.      Anti-scratch and durable electroplated titanium black panel is available.

MECHANICAL DATA

1.      Key: 71 keys, transparent PVC.

2.      Key top style: Protuberant keys, paint printing in the bottom, and then laser carved legends.

3.      Key travel:2.0mm

4.      Tracker ball:38mm(1.5') diameter, Resolution 800 edges/revolution. 25mm (1.0') stainless steel trackballs is available.

5.      Front Plate: Super quality brushed stainless steel

6.      Actuator/keys materials: PVC

7.      G.W.: 1.8KGs (X-BP711F-BL)

ELECTRICAL DATA

1.      Supply Voltage: +5V DC +/-5%

2.      Current Rating: appr. 20mA

3.      Switch Contact Material: Carbon-on-Gold key switch technology

4.      Interface: PS2, USB available.

5.      OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY

1.      Operating temperature:-20°Cto +60°C.

2.      Storage temperature:-30°Cto +70°C.

3.      Operating RH: 30-90%.

4.      Atmospheric pressure: 60-106Kpa.

RELIABILITY

1.      RoHS Compliant, CE and FCC

2.      Protection Level: IP65(front panel static)

3.      Vandal resistant IK09

4.      MTBF >50000H.

5.      MTTR <30min.
