> VANDALPROOF METAL KEYBOARD

X-BM110F

1, keyboard with IP67 optical trackball.
2, micro switch technology with short stroke 0.25mm.
3, Ideal for use in environments ranging from manufacturing to material handling to medical settings.
4, RoHS Compliant, CE and FCC.

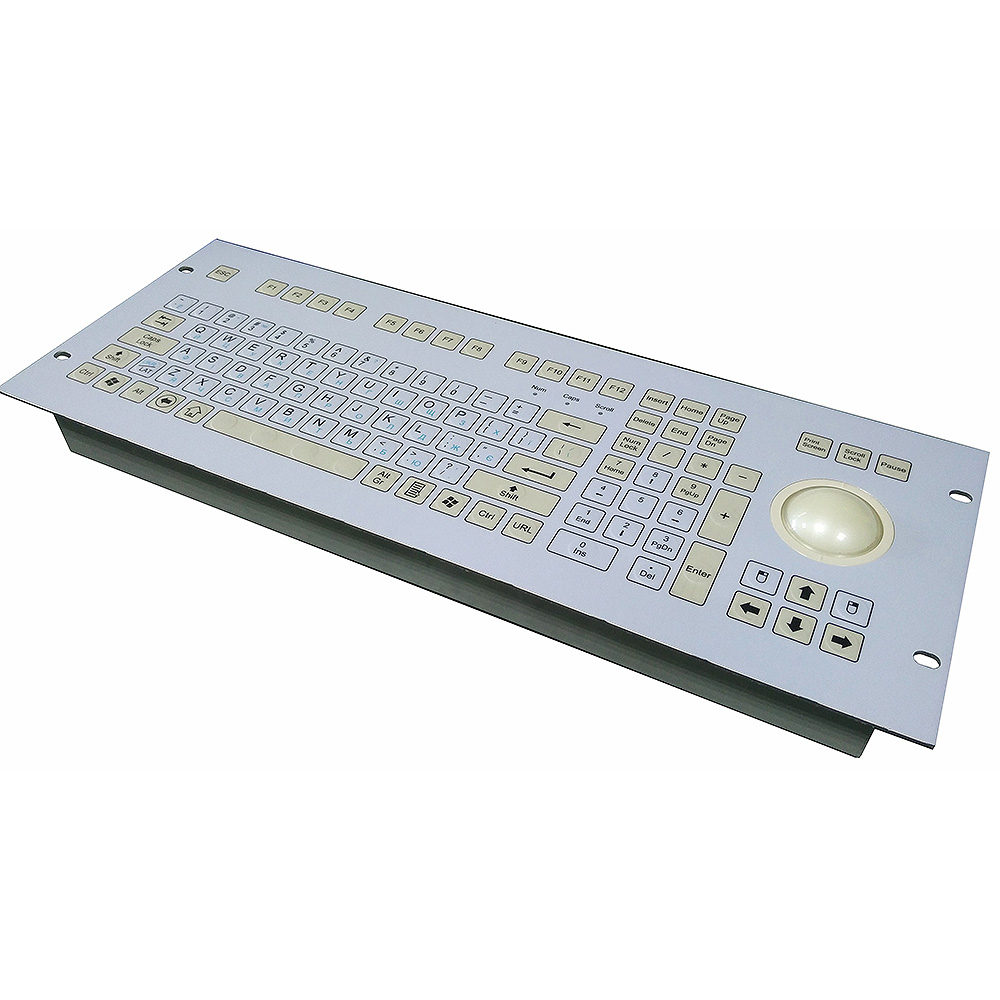

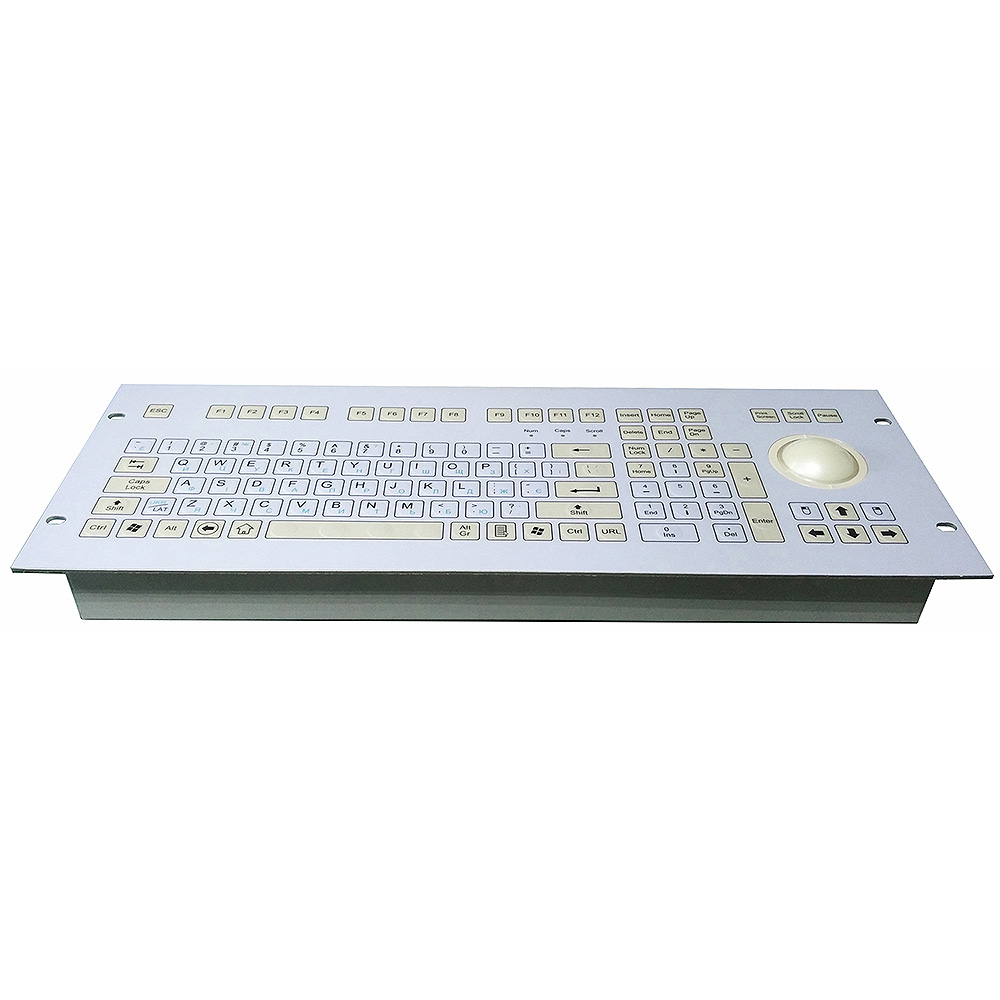

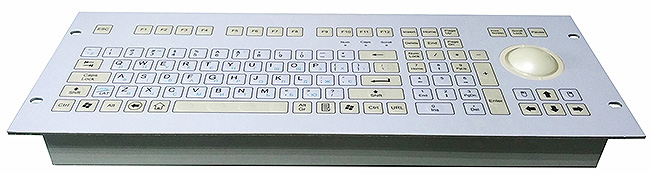

Product description: 110 keys IP67 (from the panel) industrial membran keyboard with 50mm IP67 (from the panel) optical trackball, micro switch technology with short stroke 0.25mm, with front panel mounting.
Inquiry

PRODUCT INTRODUCTION

SERIES NO.: X-BM110F

DESCRIPTION: 110 keys IP67 (from the panel) industrial membran keyboard with 50mm IP67 (from the panel) optical trackball, micro switch technology with short stroke 0.25mm, with front panel mounting.

MODEL NO.: X-BM1101F

DIMENSIONS: 482.6mm x 177.8mm (front panel)

MAIN FEATURE

1. Keyboard with IP67 (Static) optical trackball module.

2. The foil-covered aluminum front plate is mounted flush for easy cleaning.

3. The polyester front foil is wear-and tear-resistant and can withstand most chemicals and liquids. The keyboard is protected against dust, dirt, grease and liquids to IP65/NEMA4

4. Waterproof execution according to degree of protection IP67 (Static) from the panel, the keyboard is sealed against the ingress or liquid and dirt, when mounted in a suitable enclosure.

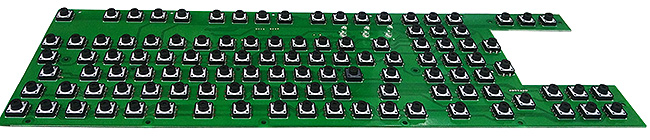

5. The keyboards micro switch technology with short stroke 0.25mm. With firm tactile perception for comfortable operation.

6. Internet friendly key layout, ease of customizing with multiple languages, to accommodate foreign or custom variants.

7. Easily mounting into enclosure or panel, and is provided with PS/2, USB connection output cables that plug directly into the host computer for normal keyboard operations.

MECHANICAL DATA

1. Key: 110 keys, micro switch technology with short stroke 0.25mm.

2. Actuation Force: 1.6N for key (press point)

3. Key travel: 0.25mm

4. Tracker ball: 50.8mm (2.0') diameter, Resolution 800 edges/revolution. 38.1mm (1.5') and 25.4 (1.0') stainless steel trackballs is available.

5. Front Plate: polyester front foil

6. Actuator/keys materials: micro switch

7. G.W.: 3.0KGs (X-BM110F)

ELECTRICAL DATA

1. Supply Voltage: +5V DC +/-5%

2. Current Rating: appr. 20mA

3. Switch Contact Material: Carbon-on-Gold key switch technology
