X-KN12B

SERIES NO.: X-KN12B

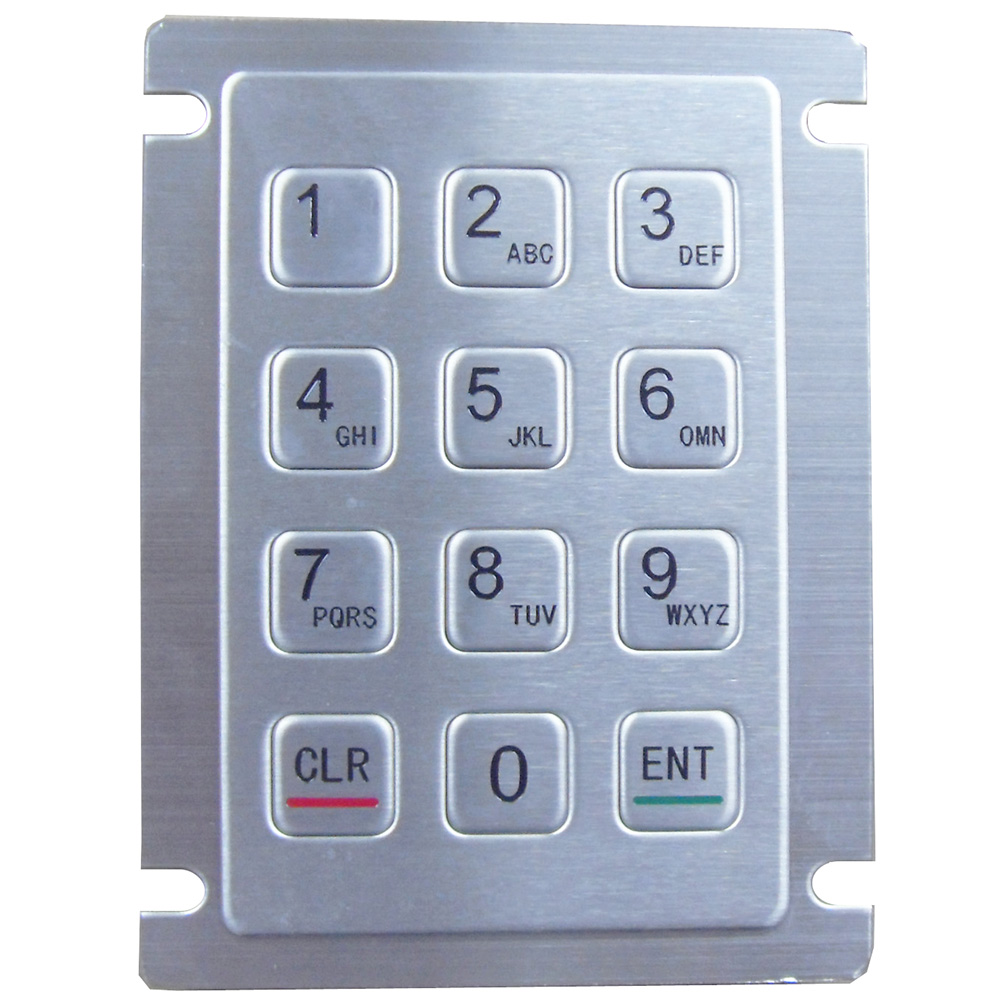

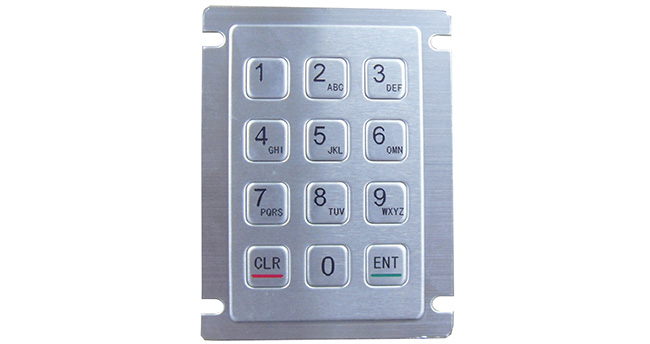

DESCRIPTION:       12 keys compact format vandal-proof IP65 stainless steel keypad with gold-on-gold key switch technology for accurate data input,with rear panel mounting solution.

MODEL NO.:    X-KN121B

DIMENSIONS:   66.0mm x 100.0mm(front panel)

MAIN FEATURE

1.      Stainless steel fascia and key-tops guard willful destruction, against corrosion, shock, dust, falling raining, splashing, hose-directed water and vandal resistant, operation under hostile environments.

2.      key-tops are sunk laser-etched in legends and characters via using high quality ink for easy readability, long life to prevent lettering rub-off.

3.      Waterproof/dirt-proof execution according to degree of protection IP65, waterproof and dirt proof encapsulation with unique membrane.

4.      Easily mounting into enclosure or panel, and is provided with PS/2, USB or RS232, connection output cables that plug directly into the host computer for keypad operations.

5.      COMMUNICATION PARAMETER.

6.     Standard PC/AT keyboard interface

7.     12 actuator on the keypad: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, *, #, 4 x 3 scanning code. Any keys can be re-defined per customers' requirements.

8.     8 functional keys: F5, F10, F11, F12 and up/down/right/left arrows (optional)

MECHANICAL DATA

1.     Key: 12 keys, SUS304 brushed stainless steel

2.     Key top style: Plain/Non-Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available

3.     Key travel: 0.45mm

4.     Front Plate: Super quality brushed stainless steel

5.     Actuator/keys materials: stainless steel

6.     Dimensions:66.0mm x 100.0mm (front panel)(X-KN121B)

7.     G.W.: 0.7KGs (X-KN121B)

ELECTRICAL DATA

1.     Power supply voltage: 5V DC.

2.     Power Consumption: Under 30mA for operation

3.     Communication interface: PS2, USB or RS232 are all available.

ENVIRONMENTAL ADAPTABILITY

1.      Operating temperature:-20°C to +60°C.

2.      Storage temperature: -30°C to +70°C.

3.      Operating RH: 30-90%.

4.      Atmospheric pressure: 60-106Kpa.

RELIABILITY

1.     RoHS Compliant, CE and FCC

2.     Protection Level: IP65(front panel dynamic)

3.     Vandal resistant IK10

4.     MTBF >50000H.

5.     MTTR <30min.
