> VANDALPROOF METAL KEYPAD

X-KN16B

1, 12 keys metal numeric keypad.
2, IP65(Dynamic) from the panel
3, Keypad with short travel 0.45mm switches.
4, Electroplated titanium black panel is available.
Product description: 16 keys compact format vandal-proof IP65 stainless steel keypad with gold-on-gold key switch technology for accurate data input,with rear panel mounting solution.
Inquiry

PRODUCT INTRODUCTION

SERIES NO.: X-KN16B

DESCRIPTION: 16 keys compact format vandal-proof IP65 stainless steel keypad with gold-on-gold key switch technology for accurate data input,with rear panel mounting solution.

MODEL NO.: X-KN161B

DIMENSIONS: 100.0mm x 91.5mm(front panel)

MODEL NO.: X-KN162B

DIMENSIONS: 160.0mm x 102.3mm(front panel)

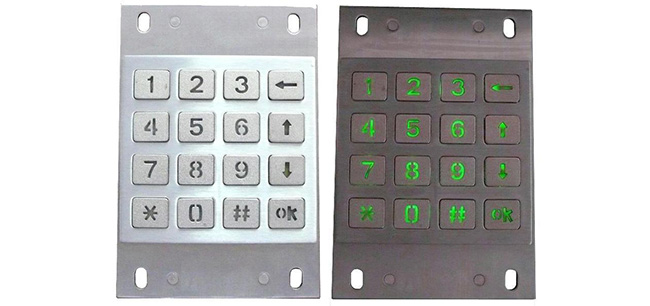

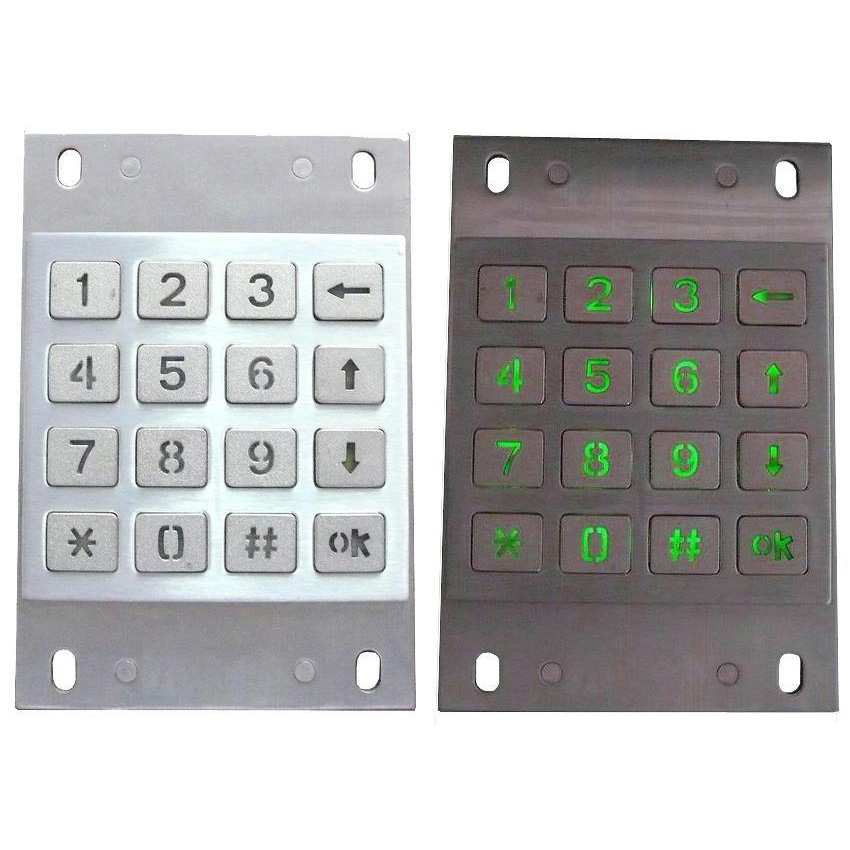

MODEL NO.: X-KN163B(With Backlight)

DIMENSIONS: 87.5mm x 91.5mm(front panel)

MODEL NO.: X-KN164B

DIMENSIONS: 87.4mm x 91.4mm(front panel)

MAIN FEATURE

Stainless steel fascia and key-tops guard willful destruction, against corrosion, shock, dust, falling raining, splashing, hose-directed water and vandal resistant, operation under hostile environments.
key-tops are sunk laser-etched in legends and characters via using high quality ink for easy readability, long life to prevent lettering rub-off.
Waterproof/dirt-proof execution according to degree of protection IP65, waterproof and dirt proof encapsulation with unique membrane.
Easily mounting into enclosure or panel, and is provided with PS/2, USB or RS232, connection output cables that plug directly into the host computer for keypad operations.

COMMUNICATION PARAMETER.

1. Standard PC/AT keyboard interface

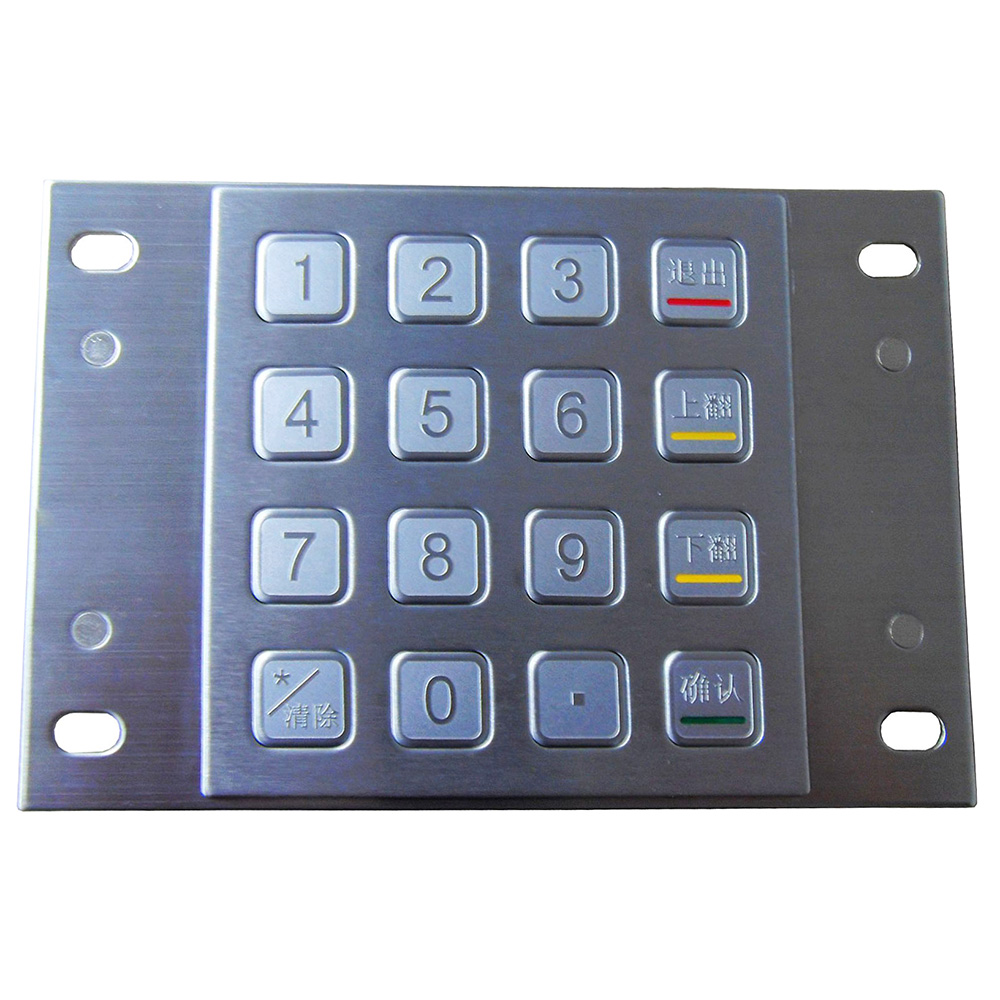

2. 16 actuator on the keypad: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, ., Exit, P-Up, P-Down, Enter, Clear, 4 x 4 scanning code. Any keys can be re-defined per customers' requirements.

3. 8 functional keys: F5, F10, F11, F12 and up/down/right/left arrows (optional)

MECHANICAL DATA

1. Key: 16 keys, SUS304 brushed stainless steel

2. Key top style: Plain/Non-Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available

3. Key travel: 0.45mm

4. Front Plate: Super quality brushed stainless steel

5. Actuator/keys materials: stainless steel

6. Dimensions: 100.0mm x 91.4mm (front panel)(X-KN161B), 160.0mm x 102.3mm(front panel)(X-KN162B)

7. G.W.: 1.0KGs (X-KN161B), 1.2KGs (X-KN162B), 1.0KGs (X-KN163B), 0.9KGs(X-KN164B)

ELECTRICAL DATA

1. Power supply voltage: 5V DC.

2. Power Consumption: Under 30mA for operation
