> INDUSTRIAL POINT DEVICES
X-BM38
- 1, 38mm mechanical trackball module.
- 2. Suitable for moist and dusty environments.
- 3, RoHS compliant, CE and FCC certified.
- Product description: 38.0mm (1.5') vandal proof IP65 mechanical trackball module, harden resin ball also available.
PRODUCT INTRODUCTION
SERIES NO.: X-BM38
DESCRIPTION: 38.0mm (1.5') vandal proof IP65 mechanical trackball module, harden resin ball also available.

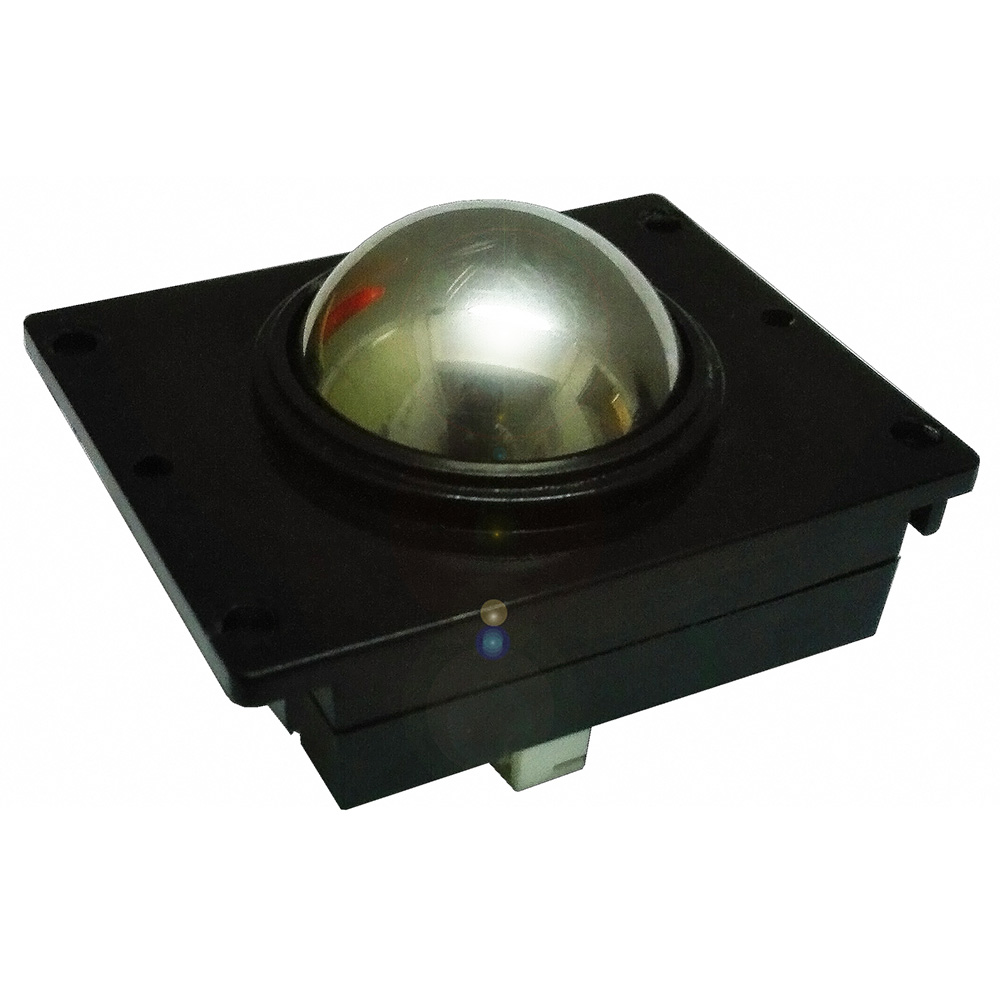

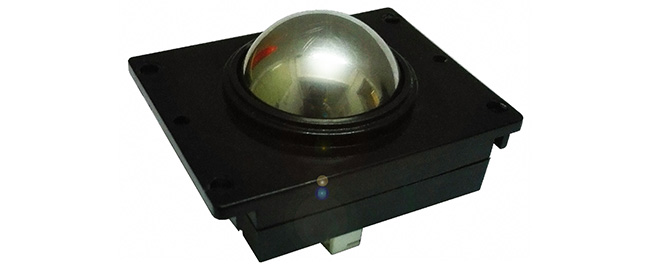

MODEL NO.: X-BM381
DIMENSIONS: 57.0mm x 74.0mm (front panel)

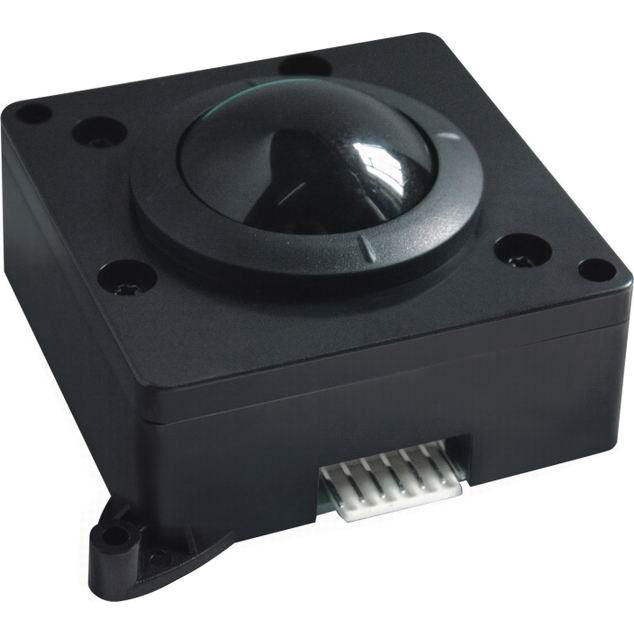

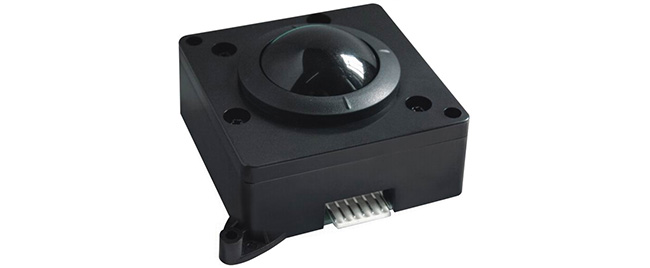

MODEL NO.: X-BM382
DIMENSIONS: 62.7mm x 62.7mm (front panel)
MAIN FEATURE
1. Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.
2. Available 40mm, 38mm, 25mm, 22mm, 19mm and 16mm diameter stainless steel or hard phenolic resin ball for smooth, durable operation and precise cursor positioning.
3. Rate sensitive dynamic resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly. .
TECHNICAL SPECIFICATION
|
ITEM |
SPECIFICATION |
|
|
Mechanical Data |
Ball diameter |
38mm/1.50' (16 mm, 19mm, 25mm, 36mm, 50 mm also available) |
|
Track ball lifespan |
> 10 Mio revolutions |
|
|
Actuation Force |
1.0N to 3.0N |
|
|
Dimension |
38 .1 mm diameter for ball |
|
|
Interface |
PS2, USB are available, Y type cable with ports of PS2 and USB |
|
|
Electrical |
Power supply |
5V DC+ 10%, keyboard interface |
|
Protection level |
IP65 (front panel), NEMA3 |
|
|
EMC Standard |
EN55022(B) |
|
|
Power consuming |
≤1.00W(dynamic) |
|
|
≤0.2W(static) |
||
|
Environmental |
Operating temperature |
-20ºC~+ 60º C |
|
Storage temperature |
- 30ºC~+ 70ºC |
|
|
Operating RH |
30～90% |
|
|
Atmospheric pressure |
60～106Kpa. |
|
|
Reliable |
Certificates |
RoHS compliant, CE and FCC certified. |
|
MTBF |
>50000h |
|
|
MTTR |
< 30min |
|
|
OS |
DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX |
|
|
Packing Details |
Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton. |
|
