X-HP2F

SERIES NO.: X-HP2F

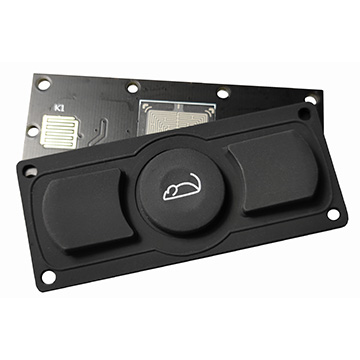

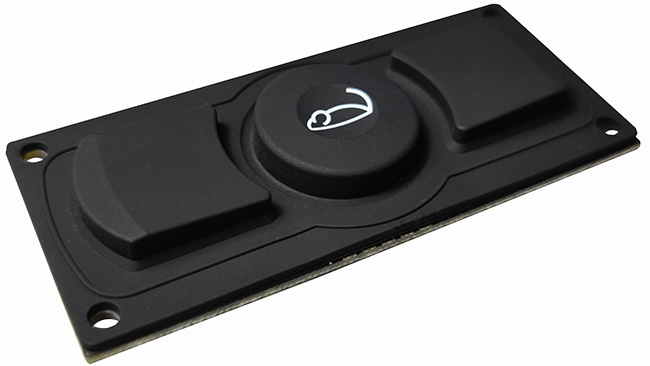

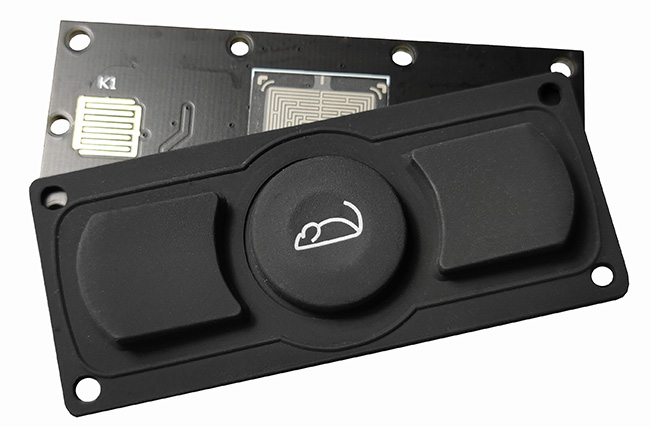

DESCRIPTION: IP67 Force Sensing Resistor pointing device integrated in one-piece compact seamless silicone cover with variable speed (0-600 DPI) control for fast and accurate cursor position,  with 2 mouse buttons, and with 4 mounting holes along for easy mounting & sealing.

MODEL NO.: X-HP21F

DIMENSIONS: 75.9mm x 32.5mm x 14mm (L x W x H)

APPLICATIONS:

1.      MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;

2.      MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc

3.      MILITARY: Army, Navy, Air force

4.      INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses

5.      OTHER INDUSTRIES

MAIN FEATURE

1.      Mouse with Force Sensing Resistor pointing device, with variable speed control (0-600 DPI) for fast and accurate cursor position. Users control direction by applying pressure in the direction of the desired movement and adjust the speed by altering the amount of pressure on the device.

2.      Waterproof execution according to IP67 protection from top silicone cover for waterproof/dirtproof/weatherproof and easy cleaning, with mounting holes on the edge for easy tightly mounting to enclosure or panel.

3.      USB connection cables that plug directly into computer like keyboard operations.

4.      Enclosure: industrial silicone with antimicrobial material.

MECHANICAL DATA

1.      Key: 2 mouse keys + 1 Hula Point button

2.      Key top style: One silicone coat with rubber keys with very good tactile feeling.

3.      Switch life: more than 5 million of operations.

4.      Cable Length: 1.5m

5.      G.W.: 0.05KGs

6.      Dimensions: 75.9mm x 69.4mm x 14mm (L x W x H)

ELECTRICAL DATA

1.      Supply Voltage: +5V DC +/-5%

2.      Current Rating:                                                                                                                                           USB: 220mA@5V (from CPU port)

3.      EMC Standard: It is compliance with the council EMC directive 89/336/EEC EN55022: 1988+A1:2000+A2:2003 EN55024: 1988+A1: 2001+A2:2003

4.      Emission: EN 50081-1

5.      Immunity: EN 50082-1

6.      Lifespan> 3 years

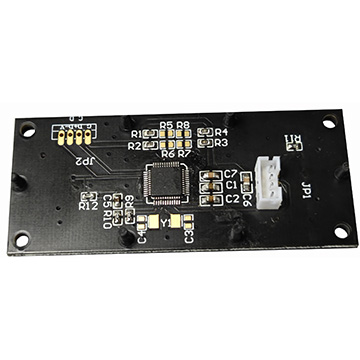

7.      Switch Contact Material: Carbon-on-Gold key switch technology with gold PCB. (Mouse keys); Silicone contact FSR (Hula Point button)

8.      Interface: USB available.

9. All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)

ENVIRONMENTAL ADAPTABILITY

1.      Operating temperature:-40^oC to +80^oC

2.      Storage temperature: :-45^oC to +85^oC

3.      Humidity: 100%

4.      Atmospheric pressure: 60-106Kpa

5. Vibration: POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours

6. Flammability

PRINTED CIRCUIT BOARD: 94 VO
SILICONE OVERLAY: 94 HB
INTERFACE CABLE: 94 V

RELIABILITY

1. RoHS Compliant, CE and FCC

2.      Protection Level: IP67, NEMA 6P

3.      Key Lifespan >5 million actuations

4.      MTBF >50000H

5.      MTTR <30min
