> INDUSTRIAL POINT DEVICES

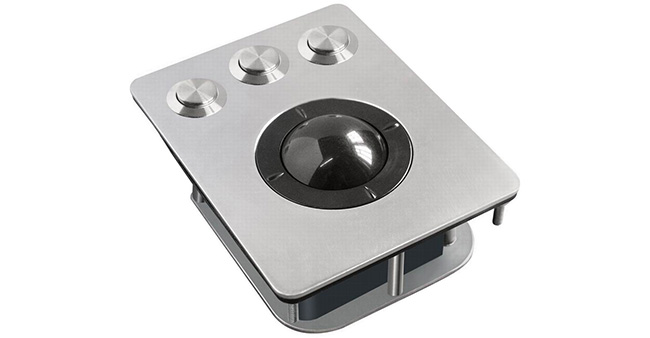

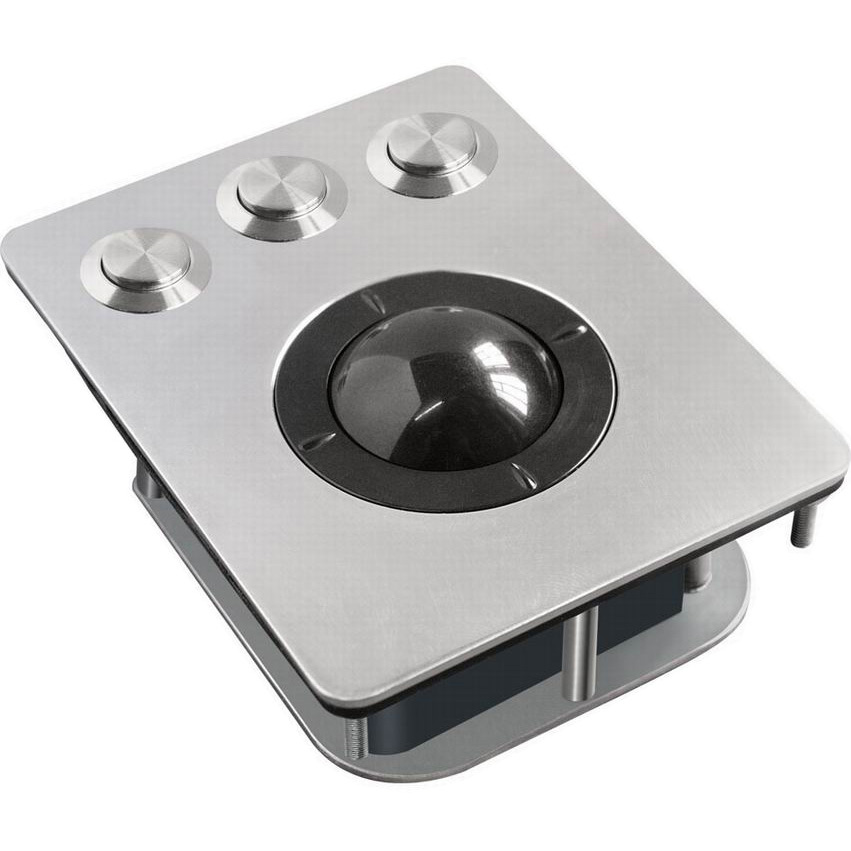

X-BP3F-R
- 1, 36mm trackball with 3 mouse keys.
- 2. Suitable for moist and dusty environments.
- 3, Ideal for use in environments ranging from manufacturing to material handling to medical settings.
- 4, IP65 from front panel.
- Product description: 36 mm vandal proof IP65 stainless steel mechanical trackball with high resolution, 3 mouse keys, with front panel mounting solution.
PRODUCT INTRODUCTION
SERIES NO.: X-BP3F-R
DESCRIPTION: 36 mm vandal proof IP65 stainless steel mechanical trackball with high resolution, 3 mouse keys, with front panel mounting solution.
MODEL NO.: X-BP31F-R
DIMENSIONS: 78.0mm x 100.0mm (front panel)
MAIN FEATURE
1. Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.
2. All Metal Mechanicals provide for rugged, smooth, long lasting operation.
3. Mechanical technology, IP65 sealing.
4. Front panel mounting.
5. Stainless steel trackball or industrial black phenolic ball is optional.
6. Its compact dimensions make these trackball units ideally suited for medical settings and all harsh industrial applications, kiosk consoles, navigation controls, etc… where minimal mounting space is required while maintaining excellent vandal proof and good sealing characteristics.
TECHNICAL SPECIFICATION
|
ITEM |
SPECIFICATION |
|
|
Mechanical |
Key |
3 keys, quality brushed stainless steel, round stainless steel sealed switches. |
|
Front Plate |
2 mm quality brushed stainless steel |
|
|
Key Travel |
1.3 mm |
|
|
Ball diameter |
36mm |
|
|
Key switch lifespan |
more than 10 Mio actuations |
|
|
Track ball lifespan |
> 10 Mio revolutions |
|
|
Actuation Force |
4 N |
|
|
Dimension |
78.0mm x 100.0mm (front panel) |
|
|
Interface |
PS2&USB, RS232, Square wave |
|
|
Electrical |
Power supply |
5VDC+10%, keyboard interface |
|
Protection level |
IP65 (front panel), NEMA3 |
|
|
EMC Standard |
EN55022(B) |
|
|
Power consuming |
≤1.0W(dynamic) |
|
|
≤0.2W(static) |
||
|
Contact Material |
Gold/Carbon |
|
|
Environmental |
Operating temperature |
-10°C-+ 60°C |
|
Storage temperature |
- 25°C-+ 80°C |
|
|
Operating RH |
30-95%(Non-condensing) |
|
|
Atmospheric pressure |
700 hpa-1060 hpa. |
|
|
Reliable |
Certificates |
RoHS compliant, CE and FCC certified. IP65 front panel. |
|
MTBF |
>50000h |
|
|
MTTR |
< 30min |
|
|
OS |
OS is under DOS/Windows95/98/NT/ME/2000/XP/2003/Vista/7/8/10, Linux, Unix, Mac OS9 / OSX |
|
|
Packing Details |
Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton. |
|
