X-BP2B-R
- IP67 trackball
- industrial trackball
- stainless steel trackball
- laser trackball

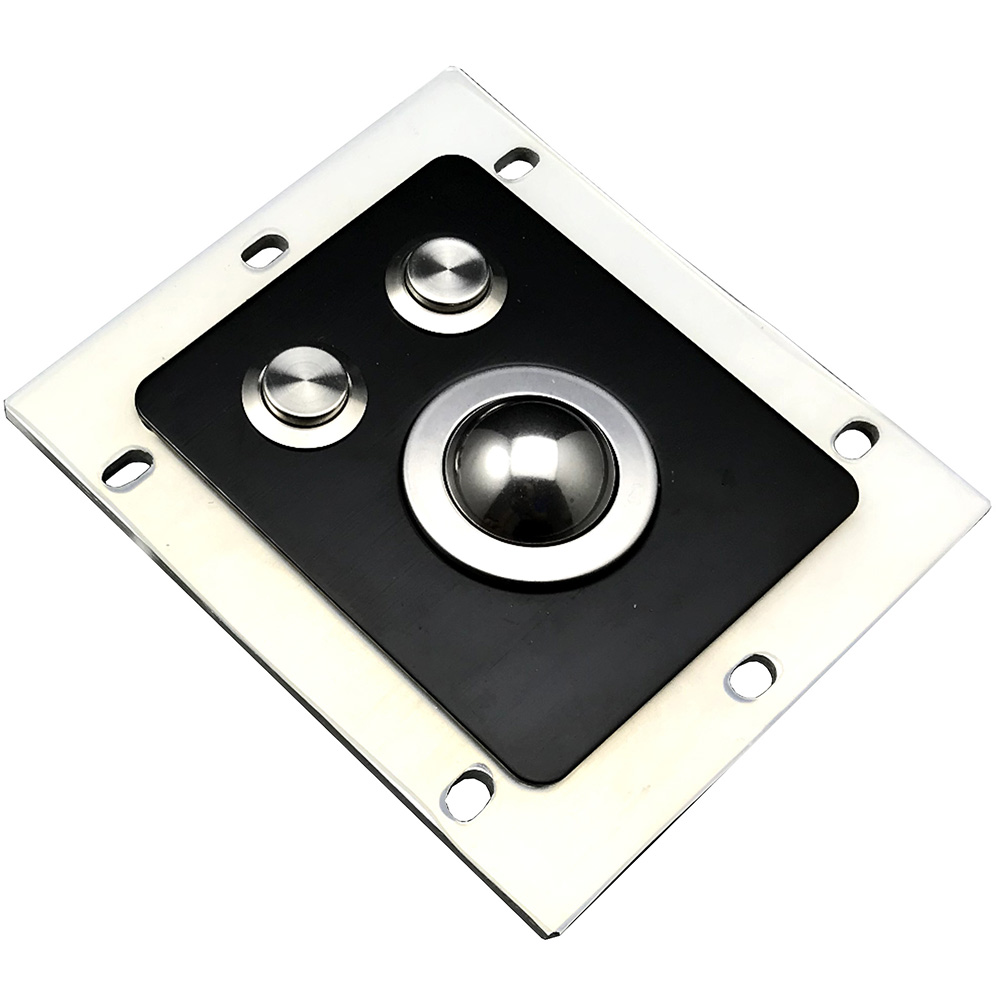

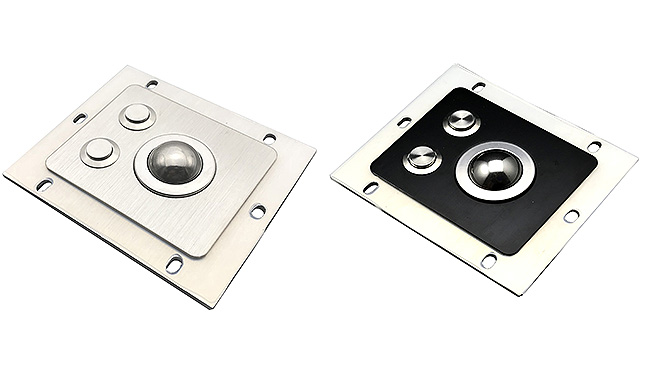

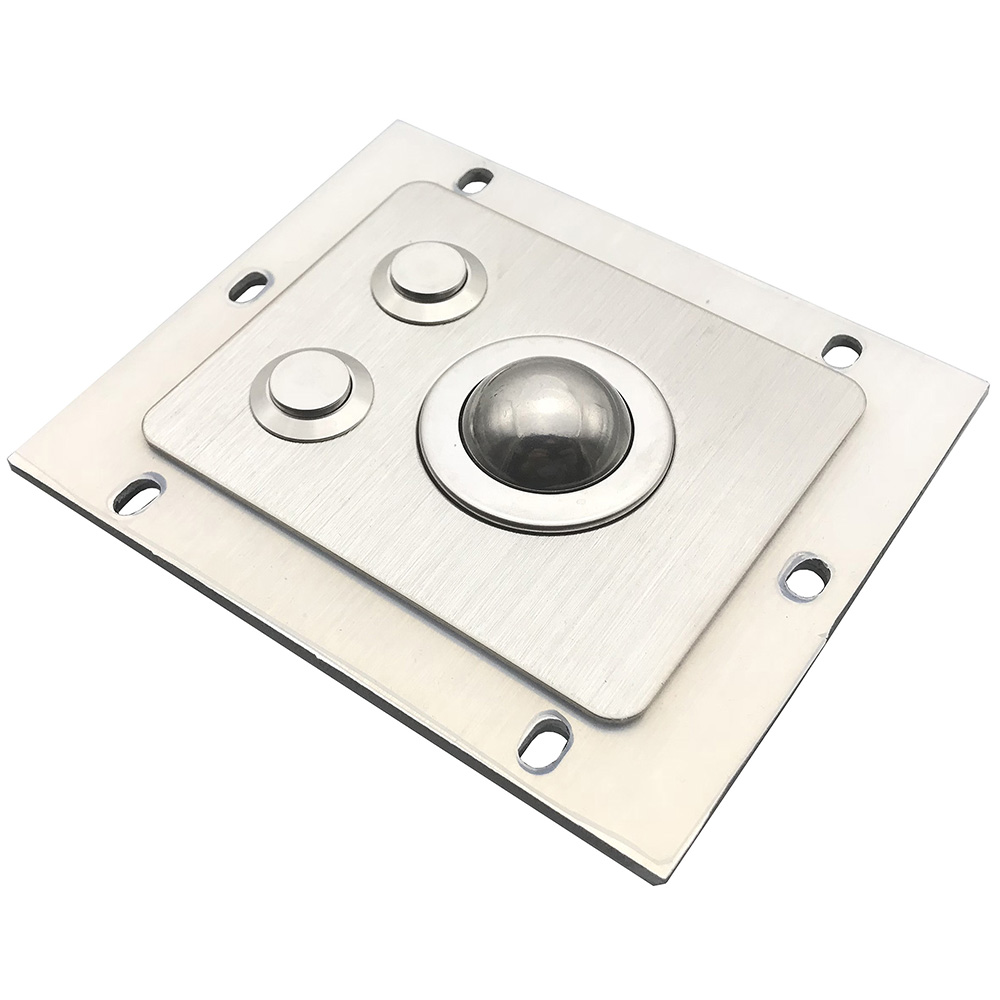

- Product description: IP67 industrial stainless steel laser trackball with 2 mouse keys
PRODUCT INTRODUCTION
SERIES NO.: X-BP2B-R
DESCRIPTION: 25mm(1.0’) vandal proof IP67 stainless steel LASER trackball with high resolution, two mouse keys, with back panel mounting solution.
MODEL NO.: X-BP21B-R
DIMENSIONS: 67.0mm x 82.0mm (front panel)
MAIN FEATURE
1. Patented silent design laser trackball module, running noiseless.
2. Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.
3. All Metal Mechanicals provide for rugged, smooth, long lasting operation.
4. IP67 sealing.

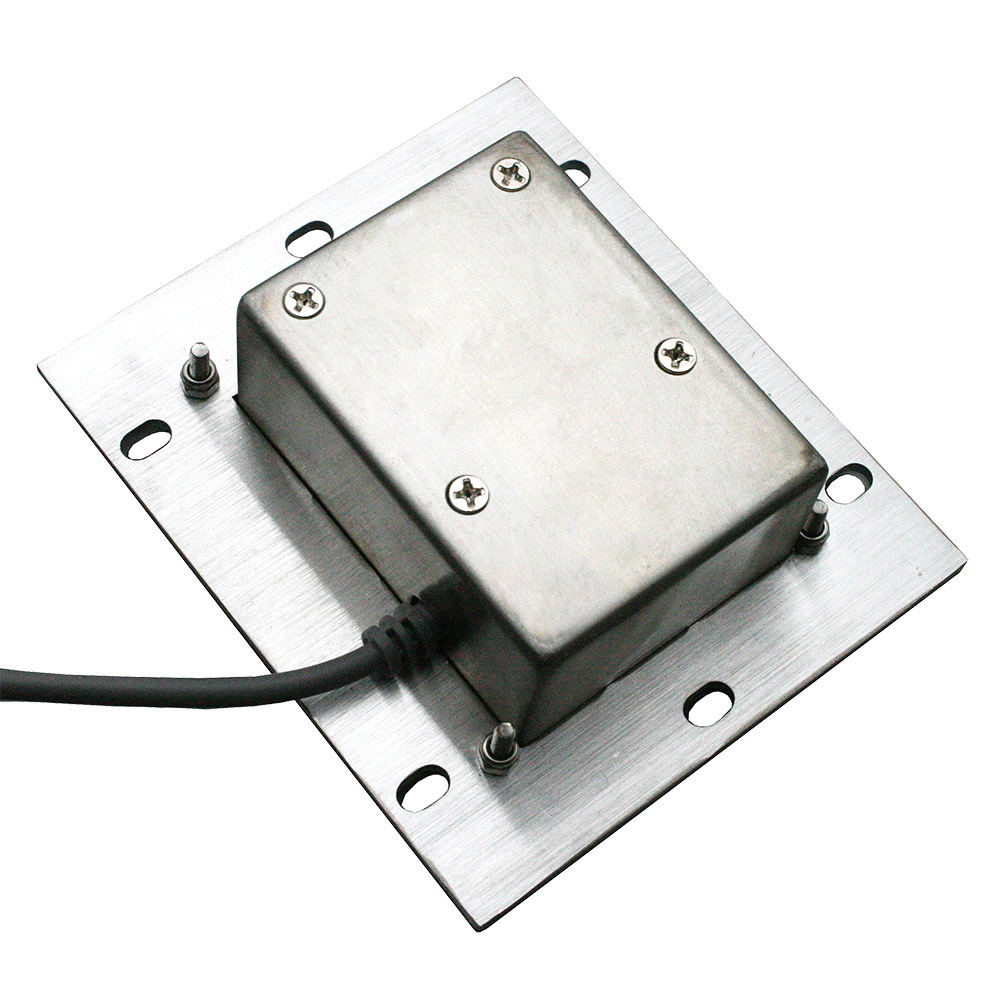

5. Back panel mounting.
6. Stainless steel ring protecting the trackball sealing.
7. Stainless steel trackball or industrial black phenolic ball is optional.
8. Its compact dimensions make these trackball units ideally suited for all harsh industrial applications, kiosk consoles, navigation controls, etc… where minimal mounting space is required while maintaining excellent vandal proof and good sealing characteristics.
TECHNICAL SPECIFICATION
ITEM |
SPECIFICATION |
|
Mechanical |
Key |
2 keys, quality brushed stainless steel, two round stainless steel sealed switches |
Front Plate |
Quality brushed stainless steel |
|
Key Travel |
1.3.0mm |
|
Ball diameter |
25mm(1.0’) |
|
Key switch lifespan |
more than 10 Mio actuations |
|
Track ball lifespan |
> 10 Mio revolutions |
|
Actuation Force |
4 N |
|
Dimension |
67.0mm x 82.0mm |
|
Interface |
PS2, USB are available, Y type cable with ports of PS2 and USB |
|
Electrical |
Power supply |
5V DC+ 10%, keyboard interface |
Protection level |
IP65 (front panel), NEMA3 |
|
EMC Standard |
EN55022(B) |
|
Power consuming |
≤1.0W(dynamic) |
|
≤0.2W(static) |
||
Contact Material |
Gold/Carbon |
|
Environmental |
Operating temperature |
-20°C-+ 60°C |
Storage temperature |
- 30°C-+ 70°C |
|
Operating RH |
30-90% |
|
Atmospheric pressure |
60-106Kpa. |
|
Reliable |
Certificates |
RoHS compliant, CE and FCC certified. IP65 front panel. |
MTBF |
>50000h |
|
MTTR |
< 30min |
|
OS |
OS is under DOS/Windows95/98/NT/ME/2000/XP/2003/Vista, Linux, Unix, Mac OS9 / OSX |
|
Packing Details |
Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton. |
