> INDUSTRIAL POINT DEVICES

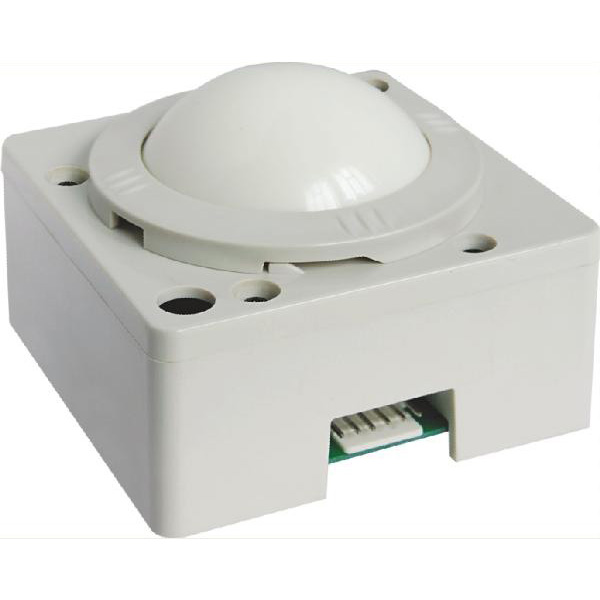

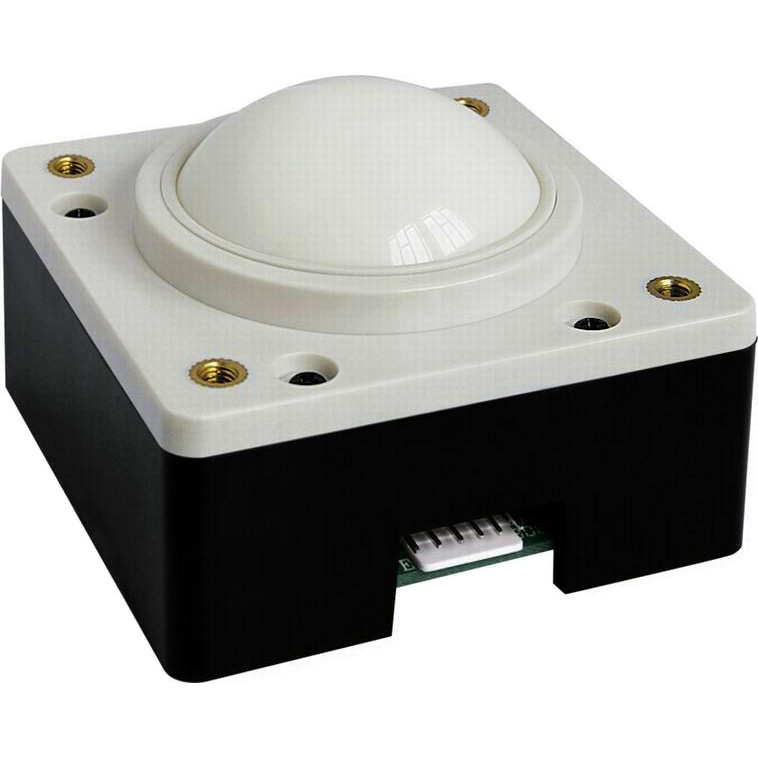

X-BM50
- 1, 50mm mechanical trackball module.
- 2, Ideal for use in environments of medical settings.
- 3, Mechanical trackball design with 400 dpi
- IP65 from front panel
- Product description: 50.8 mm vandal proof mechanical trackball module with high resolution and reliable positioning data.
PRODUCT INTRODUCTION
SERIES NO.: X-BM50
DESCRIPTION: 50.8 mm vandal proof mechanical trackball module with high resolution and reliable positioning data.

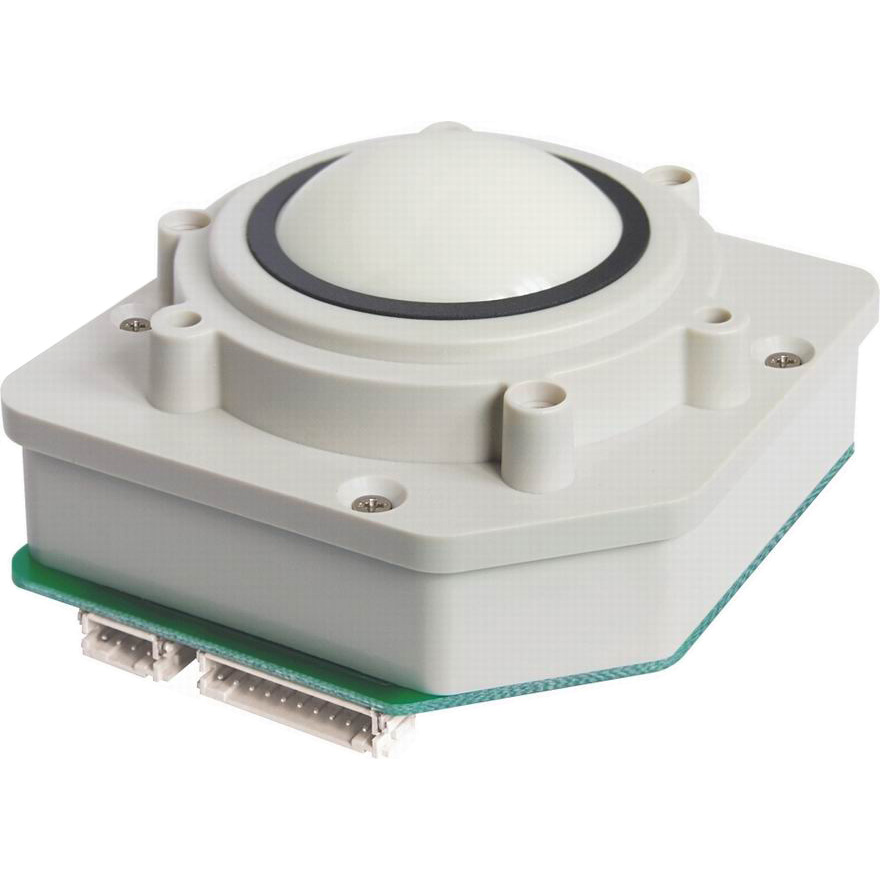

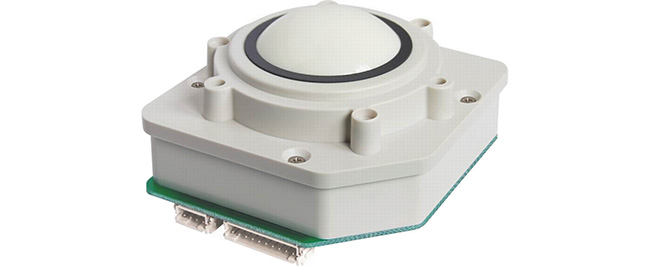

MODEL NO.: X-BM501
DIMENSIONS: 77.7 mm x 77.7 mm (front panel)

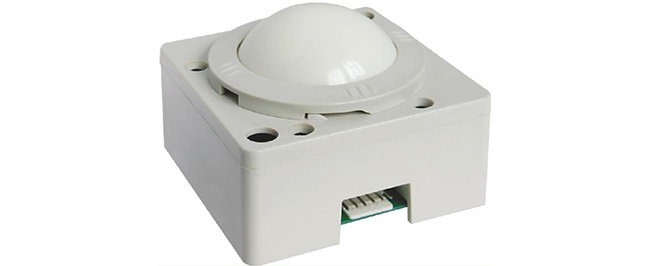

MODEL NO.: X-BM502
DIMENSIONS: 72.6mm x 72.6mm (front panel)

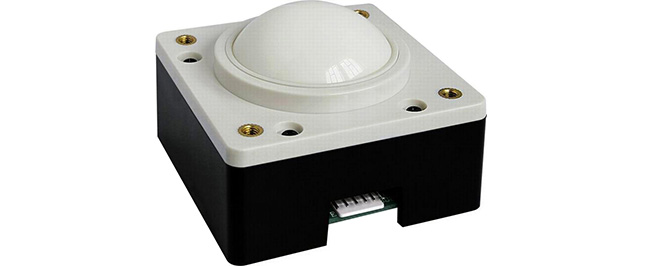

MODEL NO.: X-BM503
DIMENSIONS: 72.6mm x 72.6mm (front panel)
MAIN FEATURE
1. This trackball is ideal for use in environments ranging from manufacturing to material handling to medical settings.
2. Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.
3. Mechanical trackball design with 400 dpi, reliable positioning data.
4. Available 50mm, 38mm, 36mm, 25mm, 19mm and 12 mm diameter stainless steel for smooth, durable operation and precise cursor positioning.
5. Rate sensitive dynamic resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly.
TECHNICAL SPECIFICATION:
|
ITEM |
SPECIFICATION |
|
|
Mechanical Data |
Ball diameter |
50.8 mm (12 mm, 19 mm, 25 mm, 36 mm, 38 mm also available) |
|
Track ball lifespan |
> 10 Mio revolutions |
|
|
Actuation Force |
2.0 N to 5.0N |
|
|
Dimension |
50.8 mm for track ball. |
|
|
Interface |
PS2&USB, RS232, Square wave |
|
|
Electrical |
Power supply |
5V DC+ 10%, keyboard interface |
|
Protection level |
IP65 static in front panel, NEMA3 |
|
|
EMC Standard |
EN55022(B) |
|
|
Power consuming |
≤1.00W(dynamic) |
|
|
≤0.2W(static) |
||
|
Environmental |
Operating temperature |
-10°C-+ 60°C |
|
Storage temperature |
- 25°C-+ 80°C |
|
|
Operating RH |
30-95%(Non-condensing) |
|
|
Atmospheric pressure |
700 hpa-1060hpa. |
|
|
Reliable |
Certificates |
RoHS compliant, CE and FCC certified. IP65 front panel. |
|
MTBF |
>50000h |
|
|
MTTR |
< 30min |
|
|
OS |
DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX |
|
|
Packing Details |
Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton. |
|
