X-BP26F

SERIES NO.: X-BP26F

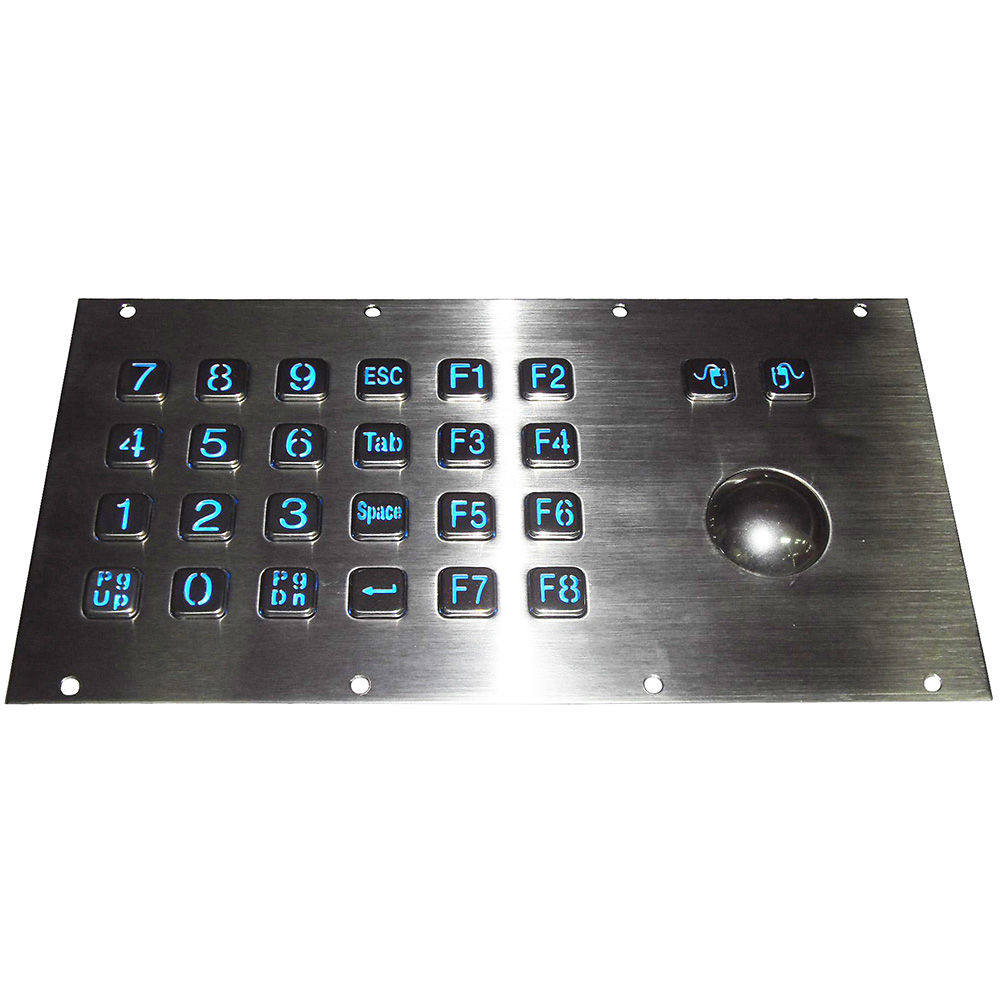

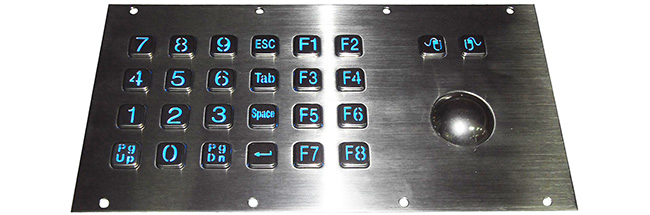

DESCRIPTION: 26 keys vandal proof stainless steel backlight keypad with integrated 38mm stainless steel tracker ball, with carbon-on-gold key switch technology for fast and accurate data input, front panel mounting.

MODEL NO.: X-BP261F

DIMENSIONS: 240.0mm x 124.0mm (front panel)

MAIN FEATURE

1.     keyboard with blue backlighting, while NVIS backlighting makes this keyboard ideal for military, aviation or vehicle applications where night vision goggles are necessary.

2.     Numeric keypad with function keys and trackball module.

3.     Imposing stainless steel design, specially designed trackball with keypad meets the highest demands with regard to design, functionality, longevity and high protection level. We design and manufacture complete electronic modules including controller in close consultation with our customers.

4.     Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.

5.     Waterproof execution according to degree of protection IP65 from the panel, the keypad is sealed against the ingress or liquid and dirt, when mounted in a suitable enclosure.

6.     The keyboards have an excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation

7.     Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.

8.     Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.

9.     Easily mounting into enclosure or panel, and is provided with PS/2, USB connection output cables that plug directly into the host computer for operations.

10.   The numeric keypad can be with encryption module supporting DES/TDES for bank usage of CDM/ATM (This is optional).

MECHANICAL DATA

1.     Key: 26 keys, super quality brushed stainless steel

2.     Key travel: 2.0mm

3.     Tracker ball: 38mm (1.5') diameter, Resolution 440 edges/revolution.

4.     Black phenolic trackballs are available.

5.     Switch life: more than 10 million of operations.

6.     Actuation Force:  0.6 N+/-0.1N

7.     Front Plate: Super quality brushed stainless steel

8.     Actuator/keys materials: stainless steel

9.     G.W. 1.40KGs( X-BP2861F)

ELECTRICAL DATA

1.     Supply Voltage: +5V DC +/-5%

2.     Current Rating: appr. 30mA

3.     Lifespan:> 5 years

4.     Contact Material: Carbon on Gold

5.     Interface: PS2, RS232, USB available. RS232 for encryption PINPAD.

6.     OS: DOS/Win 98SE/98ME/2000/ XP/vista/7/8/10, Linux, Unix and Mac OS9 / OSX

ENVIRONMENTAL ADAPTABILITY

1.     Operating temperature:-20°C to +60°C

2.     Storage temperature: -30°C to +70°C

3.     Operating RH: 30-90%

4.     Atmospheric pressure: 60-106Kpa.

5.     Saline mist: 96 hours, IEC 60512-6

6.     Damp heat test at + 40°C: 21 days, IEC 60512-6

7.     Dry heat test at + 85°C: 10 days, IEC 60512-6

RELIABILITY

1. RoHS Compliant, CE and FCC

2.     Protection Level: IP65(front panel)

3.     Vandal resistant IK09

4.     Key Lifespan >10 million actuations

5.     MTBF >50000H

6.     MTTR <30min
