X-KP16F-R

SERIES NO.: X-KP16F-R

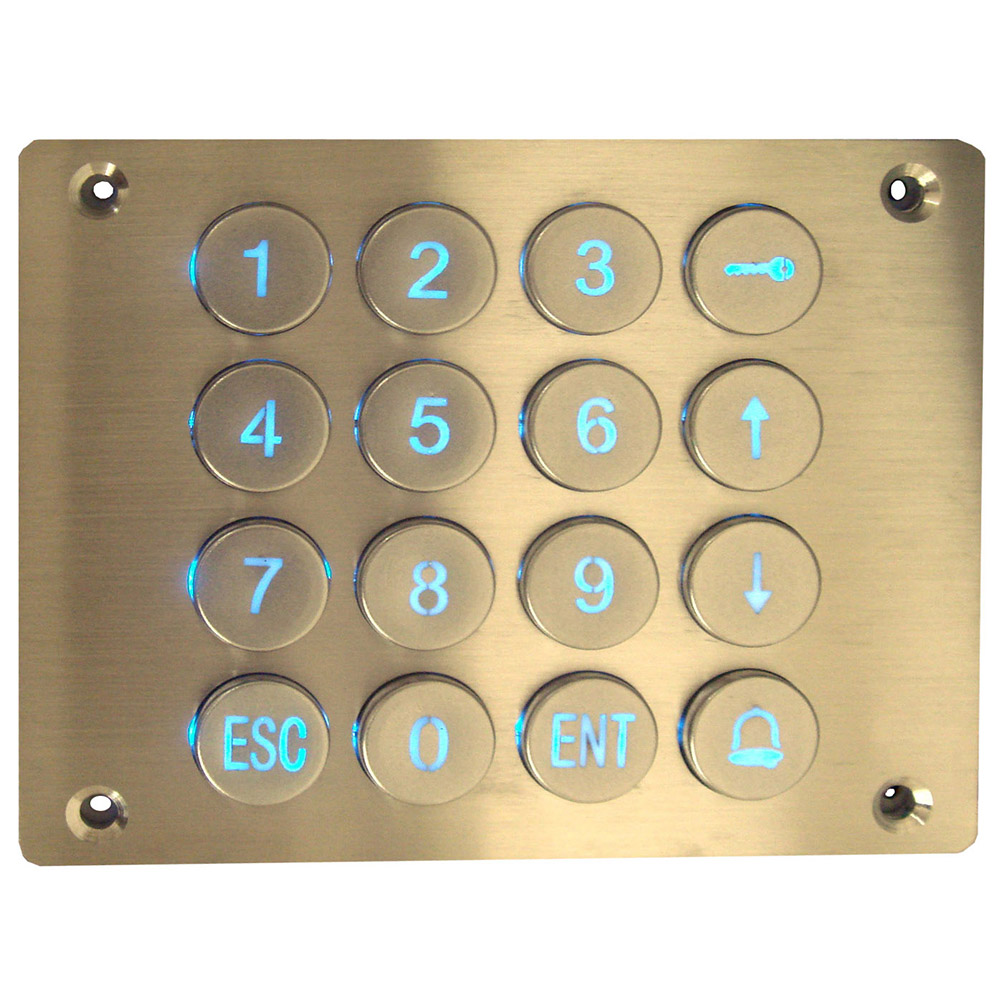

DESCRIPTION:       16 keys compact format vandal-proof IP65 stainless steel BACKLIGHT keypad with carbon-on-gold key switch technology for fast and accurate data input, with front panel mounting solution.

MODEL NO.:    X-KP161F-R

DIMENSIONS:   120.0mm x 94.0mm(front panel)

MAIN FEATURE

1.      IP65 (front panel) stainless steel keypad with LED backlight.

2.      Stainless steel fascia and key-tops guard willful destruction, against corrosion, shock, dust, falling raining, splashing, hose-directed water and vandal resistant, operation under hostile environments.

3.      key-tops are sunk laser-etched in legends and characters via using high quality ink for easy readability, long life to prevent lettering rub-off.

4.      With firm tactile key feel, full long carbon-on-gold key switches, with unique double over-travel protection.

5.      Waterproof/dirt-proof execution according to degree of protection IP65, waterproof and dirt proof encapsulation with unique membrane.

6.      Easily mounting into enclosure or panel, and is provided with PS/2, USB or RS232, connection output cables that plug directly into the host computer for keypad operations.

7.      OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista, Linux, Unix, Mac OSX

COMMUNICATION PARAMETER.

1.      Standard PC/AT keyboard interface

2.      16 actuator on the keypad: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, Exit, PgUp, PgDn, Enter, Clear, 4 x 4 scanning code. Any keys can be re-defined per customers' requirements.

3.      8 functional keys: F5, F10, F11, F12 and up/down/right/left arrows (optional)

MECHANICAL DATA

1.      Key: 16 keys, SUS304 brushed stainless steel

2.      Key top style: Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available

3.      Key travel: 2.0mm

4.      Front Plate: Super quality brushed stainless steel

5.      Actuator/keys materials: stainless steel

6.      G.W.: 1.0KGs (X-KP161F-R)

ELECTRICAL DATA

1.      Power supply voltage: 5V DC.

2.      Power Consumption: Under 30mA for operation

3.      Communication interface: PS2, USB or RS232 are all available.

ENVIRONMENTAL ADAPTABILITY

1.      Operating temperature:-20°C to +60°C.

2.      Storage temperature: -30°C to +70°C.

3.      Operating RH: 30-90%.

4.      Atmospheric pressure: 60-106Kpa.

RELIABILITY

1.      RoHS Compliant, CE and FCC

2.      Protection Level: IP65(front panel static)

3.      Vandal resistant IK09

4.      MTBF >50000H.

5.      MTTR <30min.
