> INDUSTRIAL POINT DEVICES

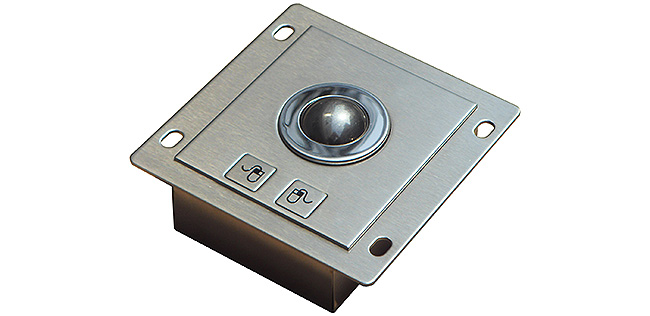

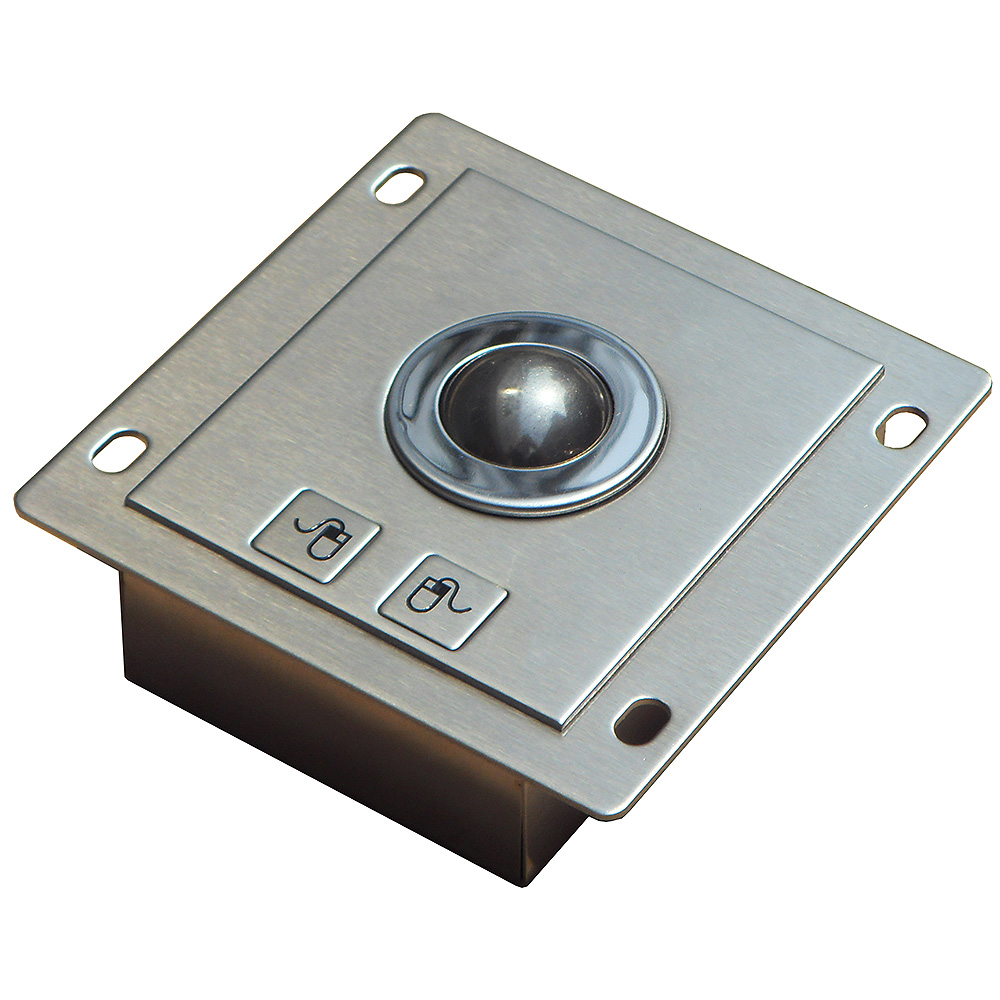

X-BN2B
- 1, 25mm trackball with 2 mouse keys.
- 2. Suitable for moist and dusty environments.
- 3, Ideal for use in environments ranging from manufacturing to material handling to medical settings.
- 4, IP65 from front panel
- Product description: 25.4mm (1.0') vandal proof IP65 stainless steel trackball with high resolution, with rear panel mounting solution.
PRODUCT INTRODUCTION
SERIES NO.: X-BN2B
DESCRIPTION: 25.4mm (1.0') vandal proof IP65 stainless steel trackball with high resolution, with rear panel mounting solution.
MODEL NO.: X-BN21B
DIMENSIONS: 65.0mm x 80.0mm (front panel)
MAIN FEATURE
1. Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.
2. All Metal Mechanicals provide for rugged, smooth, long lasting operation.
3. Mechanical technology, IP65 sealing.
4. Front panel mounting.
5. Stainless steel ring protecting the trackball sealing.
6. Stainless steel trackball or industrial black phenolic ball is optional.
7. Its compact dimensions make these trackball units ideally suited for all harsh industrial applications, kiosk consoles, navigation controls, etc… where minimal mounting space is required while maintaining excellent vandalproof and good sealing characteristics.
TECHNICAL SPECIFICATION
|
ITEM |
SPECIFICATION |
|
|
Mechanical |
Key |
2 keys, quality brushed stainless steel |
|
Key top style |
Plain/Non-Protuberant rectangular keys |
|
|
Front Plate |
Quality brushed stainless steel |
|
|
Key Travel |
0.45mm |
|
|
Ball diameter |
25.4mm/1.0' |
|
|
Key switch lifespan |
more than 10 Mio actuations |
|
|
Track ball lifespan |
> 10 Mio revolutions |
|
|
Back Metal Cover |
Rear side integrated electronics protected by a metal cover |
|
|
Actuation Force |
1.0N to 3.0N |
|
|
Mounting Rack |
Aluminum alloy |
|
|
Dimension |
Dimensions with 25mm track ball, Front plate (W x H): 65.0 x 80.0mm, Overall (W x H x D): 90.0 x 90.0 x 29.5mm |
|
|
Interface |
PS2, USB are available, Y type cable with ports of PS2 and USB |
|
|
Electrical |
Power supply |
5V DC+ 10%, keyboard interface |
|
Protection level |
IP65 (front panel), NEMA3 |
|
|
EMC Standard |
EN55022(B) |
|
|
Power consuming |
1.0W(dynamic) |
|
|
0.2W(static) |
||
|
Contact Material |
Gold/Carbon |
|
|
Environmental |
Operating temperature |
-20C-+ 60C |
|
Storage temperature |
- 30C-+ 70C |
|
|
Operating RH |
30-90% |
|
|
Atmospheric pressure |
60-106Kpa. |
|
|
Reliable |
Certificates |
RoHS compliant, CE and FCC certified. IP65 front panel. |
|
MTBF |
>50000h |
|
|
MTTR |
< 30min |
|
|
OS |
OS is under DOS/Windows95/98/NT/ME/2000/XP/2003/Vista/7/8/10, Linux, Unix, Mac OS9 / OSX |
|
|
Packing Details |
Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton |
|
