> INDUSTRIAL POINT DEVICES
X-BP2B
- 1, 38mm trackball with 2 mouse keys.
- 2. Suitable for moist and dusty environments.
- 3, Ideal for use in environments ranging from manufacturing to material handling to medical settings.
- 4, IP65 from front panel.

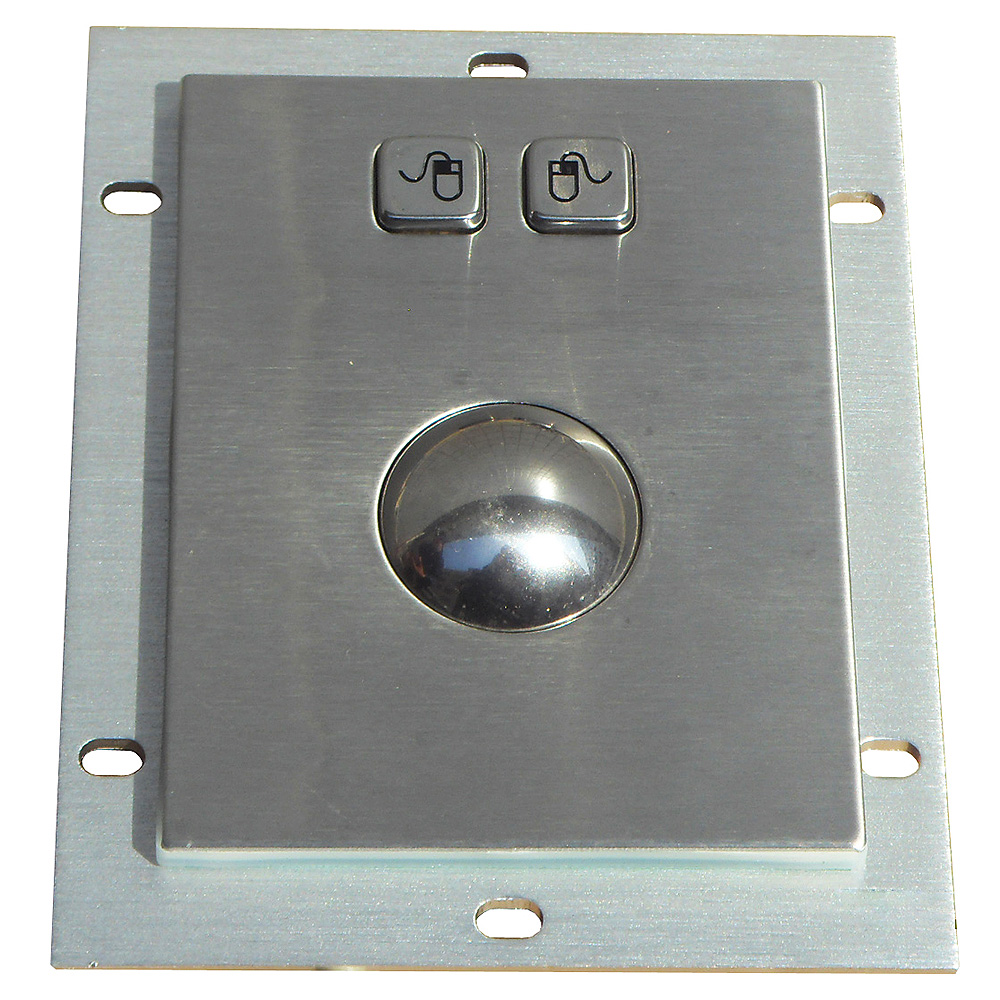

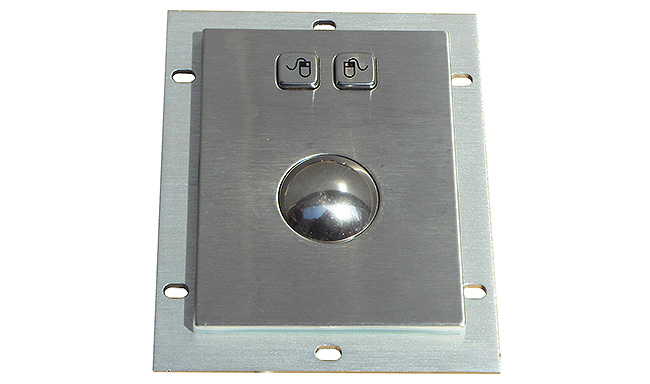

- Product description: 38.1mm (1.5') vandal proof IP65 stainless steel trackball with high resolution, with rear panel mounting solution.
PRODUCT INTRODUCTION
SERIES NO.: X-BP2B
DESCRIPTION: 38.0mm (1.5') vandal proof IP65 stainless steel LASER trackball with high resolution, with rear panel mounting solution.
MODEL NO.: X-BP21B
DIMENSIONS: 83.0mm x 110.0mm (front panel)
MAIN FEATURE
1. Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.
2. All Metal Mechanicals provide for rugged, smooth, long lasting operation.
3. Laser Encoders provide fast, high resolution more than 1000DPI, reliable positioning data.
4. Available 38mm diameter Stainless steel for smooth, durable operation and precise cursor positioning.
5. Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly.
TECHNICAL SPECIFICATION
|
ITEM |
SPECIFICATION |
|
|
Mechanical |
Key |
2 keys, quality brushed stainless steel |
|
Key top style |
Protuberant Rectangular Keys, |
|
|
Front Plate |
Quality brushed stainless steel |
|
|
Key Travel |
2.0mm |
|
|
Ball diameter |
38.1mm/1.50' (19mm, 25mm, 36mm 40mm also available soon) |
|
|
Key switch lifespan |
more than 10 Mio actuations |
|
|
Track ball lifespan |
> 10 Mio revolutions |
|
|
Back Metal Cover |
Rear side integrated electronics protected by a metal cover |
|
|
Actuation Force |
0.6 N to 1.2 N |
|
|
Mounting Rack |
Aluminum alloy |
|
|
Dimension |
Dimensions with 38.0mm track ball, Front plate (W x H): 83.0 x 110.0mm Overall (W x H x D): 107.0 x 134.0 x 40.7mm |
|
|
Interface |
PS2, USB are available, Y type cable with ports of PS2 and USB |
|
|
Electrical |
Power supply |
5V DC+ 10%, keyboard interface |
|
Protection level |
IP65 (front panel), NEMA3 |
|
|
EMC Standard |
EN55022(B) |
|
|
Power consuming |
≤1.0W(dynamic) |
|
|
≤0.2W(static) |
||
|
Contact Material |
Gold/Carbon |
|
|
Environmental |
Operating temperature |
-20°C-+ 60°C |
|
Storage temperature |
- 30°C-+ 70°C |
|
|
Operating RH |
30-90% |
|
|
Atmospheric pressure |
60-106Kpa. |
|
|
Reliable |
Certificates |
RoHS compliant, CE and FCC certified. IP65 front panel. |
|
MTBF |
>50000h |
|
|
MTTR |
< 30min |
|
|
OS |
OS is under DOS/Windows95/98/NT/ME/2000/XP/2003/Vista/7/8/10, Linux, Unix, Mac OS9 / OSX |
|
|
Packing Details |
Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton. |
|
